Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26918-1

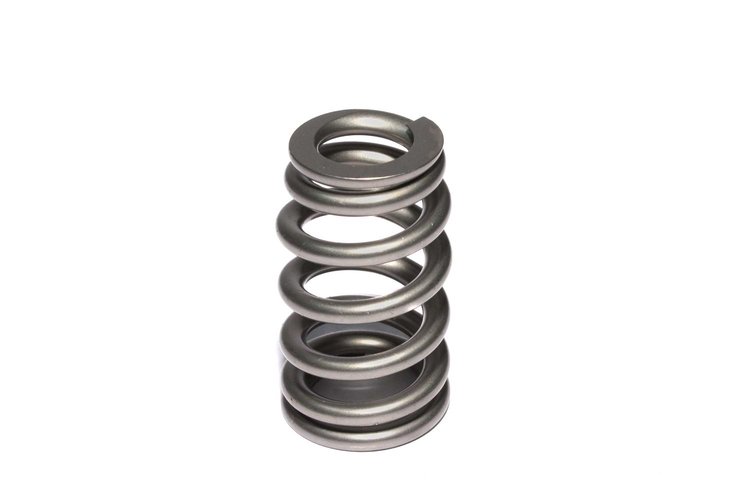

Beehive Valve Spring Chevy LS1/LS2/LS6
$2895
Ships Tomorrow
Lowest Price GuaranteeGM Gen III/IV LS
- Beehive Valve Spring
- Chevy LS1/LS2/LS6
- O.D. Base: 1.310
- 1/pkg
Designed for hydraulic cams - .625' maximum lift, 1.959' O.D.
- Originally designed for LS1, LS2 and LS6 engines
- Will work in 5.7 Hemi engine with part 249-761 or 249-762 retainer as well as many other engine combinations.
Specs - OD: Top 1.055" Bottom 1.290"
- ID: Top .650" Bottom .885"
- Seat Pressure: 130 lbs @ 1.800'
- Open Pressure: 318 lbs @ 1.200'
- Coil Bind: 1.100"
- Spring Rate: 313 lbs/in
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Ideal for performance street hydraulic flat and roller cams, this beehive spring offers more stability for high RPM potential, longer life and more power. Beehive design reduces spring weight while eliminating damaging harmonics.
Part TypeValve Spring
BrandCOMP CAMS
Package Height2.0
Package Width2.8
Package Length4.1
Weight0.2 PG
Part CategoryPerformance Parts
CoatedNo
Damper Spring IncludedNo
Spring Rate372 lbs./in.
PositionN/A
Open Height1.15 in (29.2 mm)
Open Pressure (Lbs.)367
Installed Pressure (Lbs.)125
QuantitySold individually
Installed Height1.8 in (45.72 mm)
Valve Spring StyleBeehive
Outside Diameter Of Outer Spring1.075 in (27.3 mm)
Inside Diameter Of Outer Spring0.65 in (16.51 mm)
Inside Diameter0.660/0.885
Spring TypeSingle
Spring Rate (Lbs./In.)313
Part FitmentSemi Universal
Outside Diameter1.29 in (32.8 mm)
Number Of Springs Per ValveSingle
Camshaft TypeOEM
Vendor Part Number26918-1
Package Qty1
Package TypeEA
