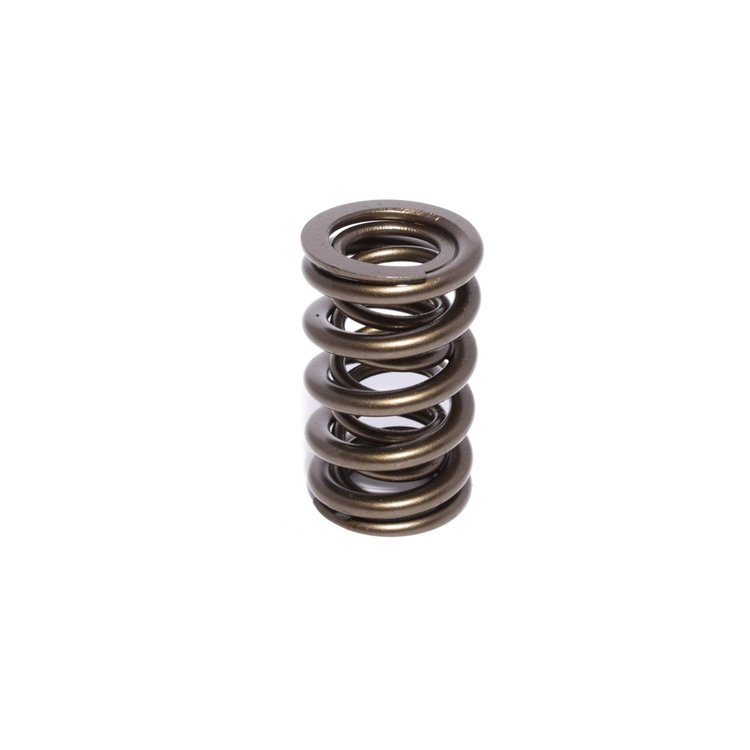

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26921-1
Dual Valve Springs Outer Spring O.D.: 1.320 in.
$5795
Ships on Sep 03, 2026
Lowest Price Guarantee1.320 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.320 in.
- Outer Spring I.D.: 0.895 in.
- Inner Spring I.D.: 0.655 in.
- Seat Load: 135lbs
- Coil Bind: 1.040 in.
- Spring Rate: 408lbs/in.
- Without damper
- Sold Individually
- Made From Super Clean Wire
- CNC Machined
- Pre-Set For Initial Load Loss
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height1.25
Package Width1.25
Package Length2.15
Weight0.2 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.04 in (26.416 mm)
Damper Spring IncludedYes
Spring Rate408 lbs./in.
PositionN/A
Open Height1.12 in (28.4 mm)
Open Pressure (Lbs.)400
Installed Pressure (Lbs.)135
QuantitySold individually
Installed Height1.77 in (44.958 mm)
Inside Diameter Of Inner Spring0.655 in (16.637 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.3 in (33 mm)
Inside Diameter Of Outer Spring0.895 in (22.733 mm)
Inside Diameter0.655 in (16.637 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)408
Outside Diameter1.3 in (33 mm)
Number Of Springs Per ValveDual
Camshaft TypeOEM
Vendor Part Number26921-1
Package Qty1
Package TypeEA
