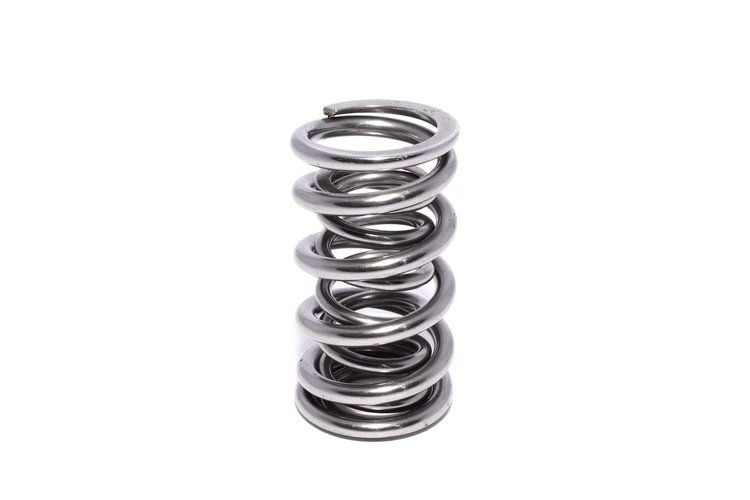

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26925-1
Dual Valve Springs Outer Spring O.D.: 1.320 in.
$3395
Ships on 09/09/2026
Lowest Price Guarantee1.320 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.320 in.
- Outer Spring I.D.: 0.958 in.
- Inner Spring I.D.: 0.680 in.
- Seat Load: 141lbs
- Coil Bind: 1.070 in.
- Spring Rate: 400lbs/in.
- Without damper
- Sold Individually
COMP Cams Dual Valve Springs for street/strip applications are manufactured from Super Clean wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today's engine builders and racers.Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height2.0
Package Width3.0
Package Length4.0
Weight0.2 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.1 in (27.94 mm)
Damper Spring IncludedNo
Spring Rate400 lbs./in.
PositionN/A
Open Height1.15 in (29.2 mm)
Open Pressure (Lbs.)405
Installed Pressure (Lbs.)141
QuantitySold individually
Installed Height1.81 in (45.974 mm)
Inside Diameter Of Inner Spring0.68 in (17.272 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.32 in (33.5 mm)
Inside Diameter Of Outer Spring0.958 in (24.333 mm)
Inside Diameter0.68 in (17.272 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)400
Part FitmentSemi Universal
Outside Diameter1.32 in (33.5 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number26925-1
Package Qty1
Package TypeEA
