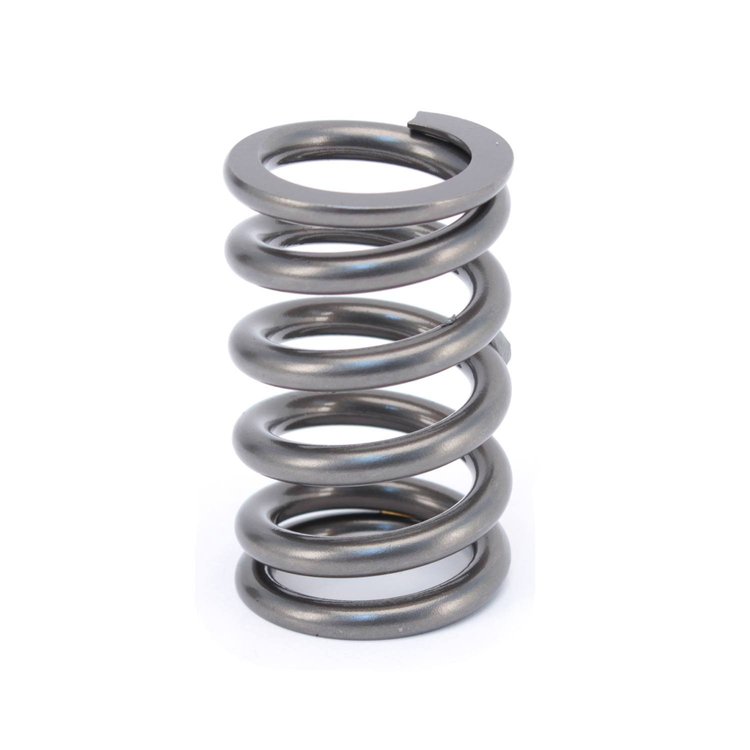

VALVE SPRING 1.320 O.D. SING

Name: VALVE SPRING 1.320 O.D. SING
Brand: COMP CAMS
SKU: 249-26975-1
Price: 37.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Outer

Rate: 356 lbs
.920'' ID, 1.320'' OD
Seat Load: 103 lbs at 1.780''
Open Load: 325 lbs at 1.160''
Coil Bind Height: 1.100''
No Damper
1/pkg

Compatible with Circle Track GM 604 Crate Engines
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Part TypeValve Spring

BrandCOMP CAMS

Package Height2.0

Package Width4.0

Package Length6.0

Weight1.0 PG

Part CategoryPerformance Parts

Coil Bind Height1 in (25.4 mm)

PositionExhaust Or Intake

Open Height1.16 in (29.5 mm)

Open Pressure (Lbs.)325

Installed Pressure (Lbs.)104

Installed Height1.78 in (45.212 mm)

Inside Diameter0.9 in (22.86 mm)

Spring TypeSingle

Spring Rate (Lbs./In.)355

Part FitmentSemi Universal

Outside Diameter1.32 in (33.5 mm)

Camshaft TypeHydraulic

Vendor Part Number26975-1

Package Qty1

Package TypeEA
