Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Universal

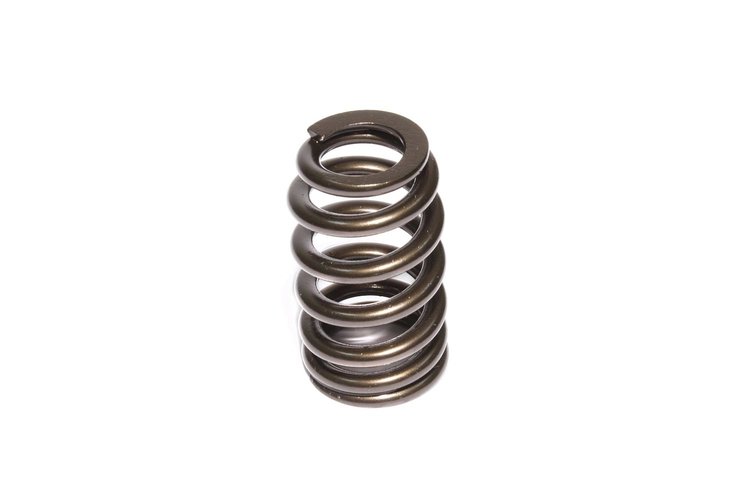

- Beehive Valve Spring
- Universal
- O.D. Base: 1.415
- 1/pkg
Designed for hydraulic or solid flat tappet cams cams as well as hydraulic rollers - .600" maximum lift, 1.415" O.D.
- Great for Pontiac, Oldsmobile and Small Block Chrysler or other applications that require shorter installed height.
Specs - OD: Top 1.065" Bottom 1.415"
- ID: Top .650" Bottom 1.000"
- Seat Pressure: 137 lbs @ 1.700'
- Open Pressure: 305 lbs @ 1.100'
- Coil Bind: 1.040"
- Spring Rate: 280 lbs/in
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height0.1
Package Width4.0
Package Length6.3
Weight0.3 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.04 in (26.416 mm)
Damper Spring IncludedNo
Spring Rate280 lbs./in.
PositionN/A
Open Height1.1 in (27.9 mm)
Open Pressure (Lbs.)305
Installed Pressure (Lbs.)137
QuantitySold individually
Installed Height1.7 in (43.18 mm)
Valve Spring StyleBeehive
Outside Diameter Of Outer Spring1.415 in (35.9 mm)
Inside Diameter Of Outer Spring1.015 in (25.781 mm)
Inside Diameter0.650/1
Spring Rate (Lbs./In.)280
Outside Diameter1.415 in (35.9 mm)
Number Of Springs Per ValveSingle
Camshaft TypeOEM
Vendor Part Number26995-1
Package Qty1
Package TypeEA
