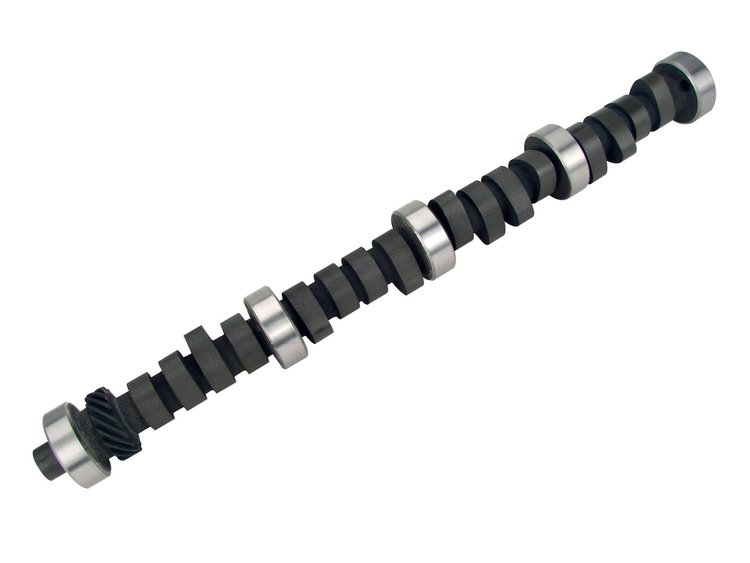

Magnum 292H Hydraulic Flat Tappet Camshaft Only
Lift: .518''
Duration: 292°
RPM Range: 2500-6500


*Note: Firing Order 1-5-4-2-6-3-7-8

Street/Strip use. 3500 stall or 4-speed, 4.10:1 gear & 10.5:1 compression. Very rough idle.

Operating Range:	2500-6500 RPM
Duration Advertised:	292° Intake / 292° Exhaust
Duration @ .050' Lift:	244° Intake / 244° Exhaust
Valve Lift w/1.6 Rockers:	.518' Intake / .518' Exhaust
Lobe Separation Angle:	110°

Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis


Street/strip use. 3500+ stall or 4 speed, 4.10 gear and 10.5:1 compression. Very rough idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
