Vehicle Info NeededCOMP CAMSPART NUMBER: 249-31-670-4

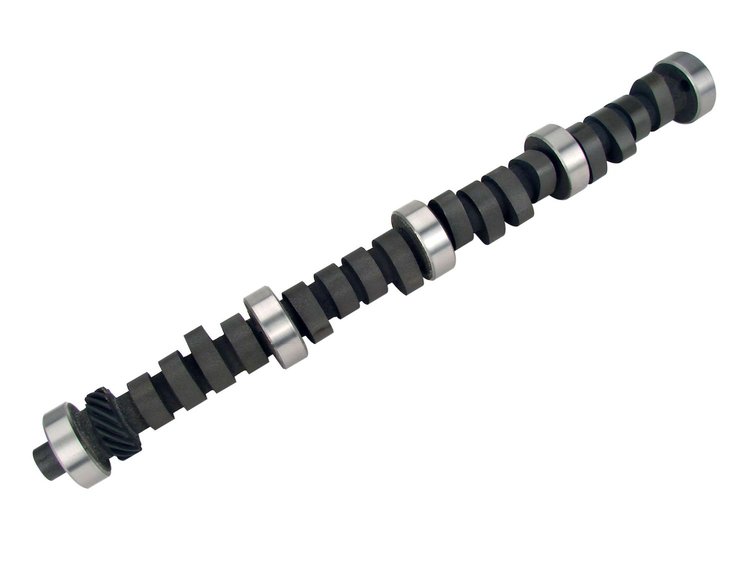

Comp Cams Nostalgia Plus Camshafts
$30995
1 left in stock
Ships Today
Lowest Price GuaranteeFord 289-302ci 1963-1995 Hydraulic Camshaft
- Nostalgia Plus Hydraulic Flat Tappet Camshaft
Ford 289-302ci 1963-1995
Lift: .480"/.480"
Duration: 266°/273°
Lobe Separation Angle: 112°
RPM Range: 2200-6400
Hydraulic-Sound of Ford 271HP 289 cam with hydraulic lifters and increased performance.
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Sound of Ford 271 HP 289 cam with hydraulic lifters and increased performance.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.3
Weight9.75 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)226
Cam StyleHydraulic flat tappet
Grind NumberFS NOSTALGIA 271H+
Exh. Duration Advertised (Deg)273
Engine Make/SizeFord 289-302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.48
Int. Duration @ .050 In. (Deg)219
Basic Operating Rpm Range2,200-6,400
Intake Valve Lift0.48 in (12.192 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)266
Lobe Separation (Deg)112
Rpm Range2200-6400
Advertised Duration266 int./273 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.475
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.480 int./0.475 exh.
QuantitySold individually
Exhaust Valve Lift0.475 in (12.065 mm)
Advertised Intake Duration266
Intake Duration At 050 Inch Lift219
Exhaust Duration At 050 Inch Lift226
Advertised Exhaust Duration273
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift219 int./226 exh.
Valve Springs RequiredYes
Vendor Part Number31-670-4
Package Qty1
Package TypeEA
