Vehicle Info NeededCOMP CAMSPART NUMBER: 249-31-760-8

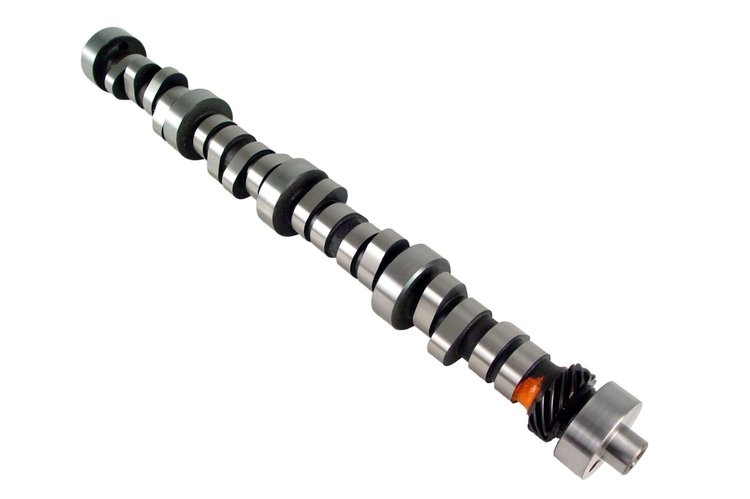

Magnum Mechanical Roller Camshaft Ford 289-302ci 1963-1995 Lift: .586"/.586"
$52295
Ships on 09/16/2026
Lowest Price GuaranteeFord 289-302ci 1963-1995
- Magnum Mechanical Roller Camshaft
- Lift: .586"/.586"
- Duration: 288°/288°
- Lobe Separation Angle: 110°
- RPM Range: 2200-6500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Broad power, lower gear ratio, 2500+ stall with headers. Rough idle.
Ford 289-302ci 1963-1995
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.3
Package Length24.2
Weight9.7 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleMechanical roller tappet
Grind NumberFS 288R-10
Exh. Duration Advertised (Deg)288
Engine Make/SizeFord 289-302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.586
Int. Duration @ .050 In. (Deg)246
Basic Operating Rpm Range2,200-6,500
Intake Valve Lash0.02 in (0.508 mm)
Intake Valve Lift0.586 in (14.884 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)288
Lobe Separation (Deg)110
Rpm Range2200-6500
Advertised Duration288 int./288 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.586
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.586 int./0.586 exh.
QuantitySold individually
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.586 in (14.884 mm)
Advertised Intake Duration288
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration288
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number31-760-8
Package Qty1
Package TypeEA
