Product Discontinued
COMP CAMSPART NUMBER: 249-31-761-8

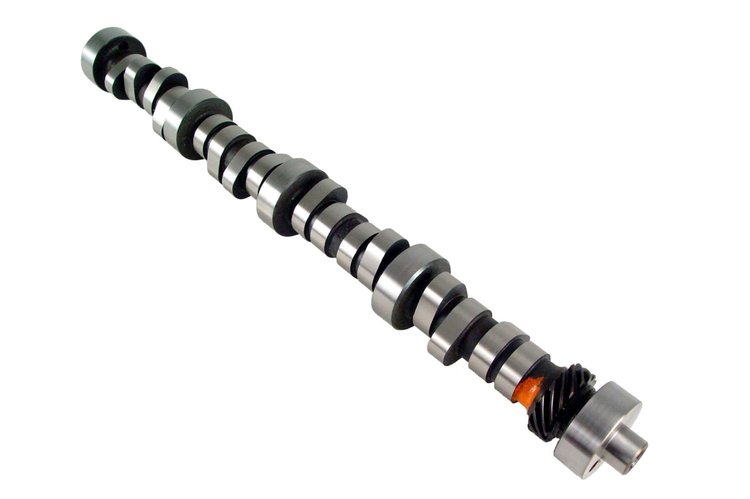

Magnum Mechanical Roller Camshaft Ford 289-302ci 1963-1995 Lift: .613"/.613"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 289-302ci 1963-1995
- Magnum Mechanical Roller Camshaft
- Lift: .613"/.613"
- Duration: 308°/308°
- Lobe Separation Angle: 110°
- RPM Range: 3000-7000
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Ultimate in Pro Street. 3500+ stall, 4.10 or lower gear. Radical idle.
Ford 289-302ci 1963-1995
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.4
Weight9.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)264
Cam StyleMechanical roller tappet
Grind NumberFS 308-R10
Exh. Duration Advertised (Deg)308
Engine Make/SizeFord 289-302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.613
Int. Duration @ .050 In. (Deg)264
Basic Operating Rpm Range3,000-7,000
Intake Valve Lash0.02 in (0.508 mm)
Intake Valve Lift0.613 in (15.57 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)308
Lobe Separation (Deg)110
Rpm Range3000-7000
Advertised Duration308 int./308 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.613
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.613 int./0.613 exh.
QuantitySold individually
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.613 in (15.57 mm)
Advertised Intake Duration308
Intake Duration At 050 Inch Lift262
Exhaust Duration At 050 Inch Lift262
Advertised Exhaust Duration308
Lifter TypeMechanical Roller
Duration At 050 Inch Lift262 int./262 exh.
Valve Springs RequiredYes
Vendor Part Number31-761-8
Package Qty1
Package TypeEA
