Vehicle Info NeededCOMP CAMSPART NUMBER: 249-3100-5

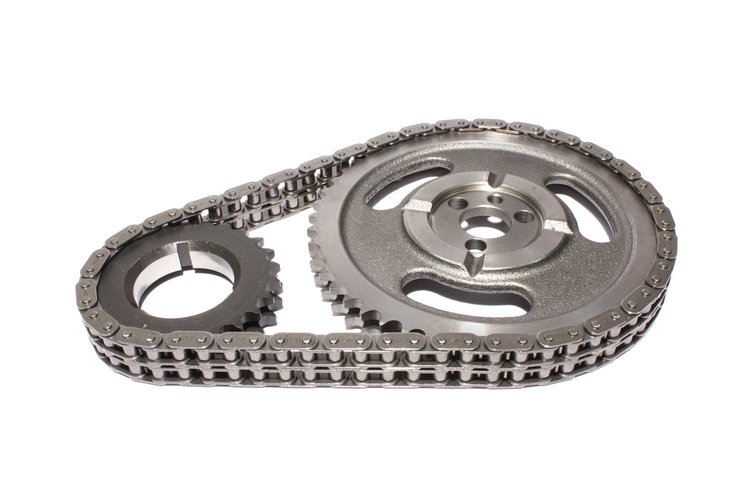

Hi-Tech Roller Race Timing Set 1978-86 Chevy V6 90° 200-262
$19895
Ships on 09/09/2026
Lowest Price GuaranteeTiming Chain SetsChevy
- Hi-Tech Roller Race Timing Set
- 1978-86 Chevy V6 90° 200-262
- 1955-91 Chevy 265-400 Small Block (Except w/Factory Roller)
- 0.005" Undersized
- Cast Iron camshaft gear and induction hardened billet steel crank sprocket
- Feature 3 keyway crank sprocket for 4-degree incremental adjustability, 4-degree maximum advance/retard
- Pre-stretched, heat-treated double roller chain with heavy-duty large pin design; chain available separately
- Dynamically balanced and quality checked for run-out tolerances
- Ideal for all street performance and race applications
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Featuring a cast iron cam gear and billet steel crank gear, this 3-bolt double roller timing set for .005" undersized align bored '78-'86 Chevrolet V6 and Chevrolet Small Block is ideal for all street performance and race applications.
Part TypeTiming Chain and Gear Set
BrandCOMP CAMS
Package Height1.5
Package Width6.75
Package Length11.5
Weight3.3 PG
Part CategoryPerformance Parts
Gaskets IncludedNo
Thrust Bearing IncludedNo
Crank Sprocket MaterialIron
Offset Bushings IncludedNo
Timing Chain StyleDouble roller
Maximum Advance/Retard At Crankshaft4 degree
QuantitySold as a kit
Cam Sprocket MaterialBillet steel
Maximum Advance/Retard At CamshaftNone
Bolts/Studs IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Vendor Part Number3100-5
Package Qty1
Package TypeEA
