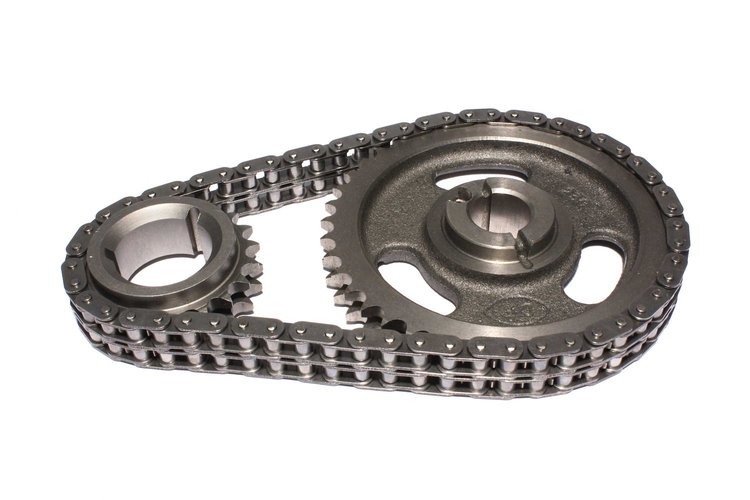

Hi-Tech Roller Race Timing Set 3/22/1984-92 Ford 5.0L 302/351W
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-3138

Hi-Tech Roller Race Timing Set 3/22/1984-92 Ford 5.0L 302/351W

$10095
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Timing Chain Sets
  • Ford
    • Hi-Tech Roller Race Timing Set
    • 3/22/1984-92 Ford 5.0L 302/351W

    • Cast Iron camshaft gear and induction hardened billet steel crank sprocket
    • Feature 3 keyway crank sprocket for 4-degree incremental adjustability, 4-degree maximum advance/retard
    • Pre-stretched, heat-treated double roller chain with heavy-duty large pin design; chain available separately
    • Dynamically balanced and quality checked for run-out tolerances
    • Ideal for all street performance and race applications

      Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150


      Featuring a cast iron cam gear and billet steel crank gear, this 3-bolt double roller Hi-Tech timing set for '84-'92 Ford 5.0L, 302 and 351W is ideal for all street performance and race applications.

    Quality checked for runout tolerances, Comp Cams Hi-Tech Roller Race Timing Sets are designed for extreme racing applications. They feature double-row chains with oversized rollers for extra strength and reliability, plus crank sprockets with three keyways to set cam timing at normal, 4° advanced, or 4° retarded.

    Features:

    • Ideal for race vehicles
    • Induction-hardened cast iron camshaft and billet steel crank sprocket
    • Dynamically balanced for smoother, more accurate operation with less fluctuation
    • 3-keyway crank sprocket for 4° incremental adjustability (4° maximum advance/retard)
    • Heat-treated double roller chain with heavy-duty large pin design (chain available separately)
    Part TypeTiming Chain and Gear Set
    Product LineComp Cams Hi-Tech Roller Race Timing Sets
    BrandCOMP CAMS
    Package Height1.4
    Package Width6.6
    Package Length9.6
    Weight3.58 PG
    Part CategoryPerformance Parts
    Gaskets IncludedNo
    Thrust Bearing IncludedNo
    Crank Sprocket MaterialSteel
    Offset Bushings IncludedNo
    Timing Chain StyleDouble roller
    Maximum Advance/Retard At Crankshaft4 degree
    QuantitySold as a set
    Cam Sprocket MaterialSteel
    Maximum Advance/Retard At Camshaft2 degree
    Bolts/Studs IncludedNo
    Engine Make/SizeFord 351W
    Vendor Part Number3138CPG
    Package Qty1
    Package TypeEA
