Vehicle Info NeededCOMP CAMSPART NUMBER: 249-34-238-4

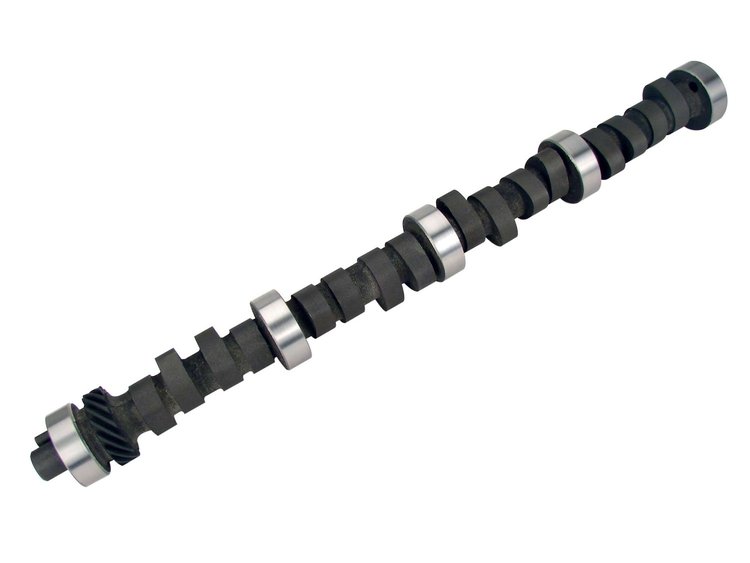

Xtreme Energy 262H Hydraulic Flat Tappet Camshaft Only Lift .513"/.520" Duration 262°/270° RPM Range 1300-5600
$30995
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeFord 429, 460 c.i. 8 CYL. 1968-1995
- Xtreme Energy 262H Hydraulic Flat Tappet Camshaft Only
Lift .513"/.520"
Duration 262°/270°
RPM Range 1300-5600
Hydraulic-Strong torque, excellent response heavy towing in 460 with 4:10 gears
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Strong torque, excellent response heavy towing in 460 with 4:10 gears.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.0
Package Length24.5
Weight11.65 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic flat tappet
Grind NumberFF XE262H-10
Exh. Duration Advertised (Deg)270
Engine Make/SizeFord 429-460
Intake Valve Lift With Factory Rocker Arm Ratio (I0.513
Int. Duration @ .050 In. (Deg)218
Basic Operating Rpm Range1,300-5,600
Intake Valve Lift0.513 in (13.03 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)110
Rpm Range1300-5600
Advertised Duration262 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.52
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.513 int./0.520 exh.
QuantitySold individually
Exhaust Valve Lift0.52 in (13.208 mm)
Advertised Intake Duration262
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift224
Advertised Exhaust Duration270
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift218 int./224 exh.
Valve Springs RequiredYes
Vendor Part Number34-238-4
Package Qty1
Package TypeEA
