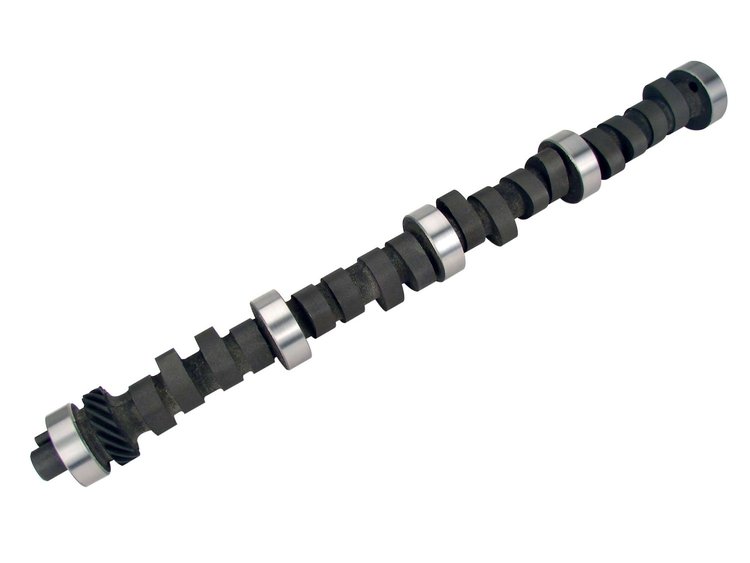

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-34-255-5
Computer Controlled Hydraulic Flat Tappet Camshaft RPM Range: 1000-5200
$32595
1 left in stock
Ships Today
Lowest Price GuaranteeFord 429-460
- Computer Controlled Hydraulic Flat Tappet Camshaft
- RPM Range: 1000-5200
- Lift: .490"/.495"
- Advertised Duration: 256°/268°
- Lobe Separation Angle: 114°
- Hydraulic EFI works with stock computer
- Very strong torque, excellent mileage, good idle quality
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
EFI speed density, works with stock computer. Very strong torque, excellent mileage, good idle quality.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.1
Package Length24.3
Weight12.12 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)219
Cam StyleHydraulic flat tappet
Grind NumberFF XE256 H14
Exh. Duration Advertised (Deg)268
Engine Make/SizeFord 429-460
Intake Valve Lift With Factory Rocker Arm Ratio (I0.49
Int. Duration @ .050 In. (Deg)212
Basic Operating Rpm Range1,000-5,200
Intake Valve Lift0.49 in (12.446 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)256
Lobe Separation (Deg)114
Rpm Range1000-5200
Advertised Duration256 int./268 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.495
UsageOEM
Valve Lift With Factory Rocker Arm Ratio0.490 int./0.495 exh.
QuantitySold individually
Exhaust Valve Lift0.495 in (12.573 mm)
Advertised Intake Duration256
Intake Duration At 050 Inch Lift212
Exhaust Duration At 050 Inch Lift219
Advertised Exhaust Duration268
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift212 int./219 exh.
Valve Springs RequiredYes
Vendor Part Number34-255-5
Package Qty1
Package TypeEA
