Vehicle Info NeededCOMP CAMSPART NUMBER: 249-34-710-9

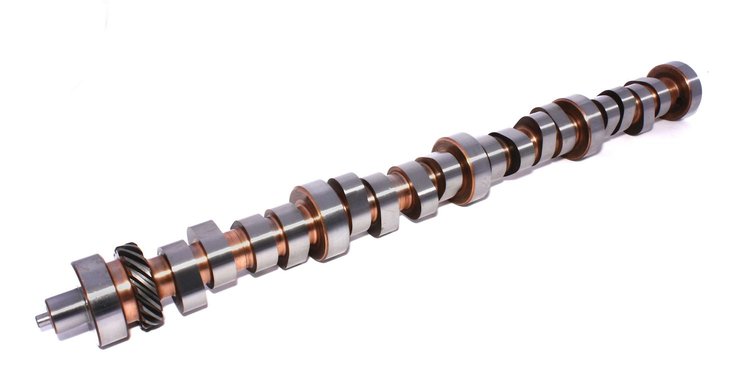

Magnum Mechanical Roller Camshaft Ford 429, 460ci 1968-1994 Lift: .663"/.663"
$55895
3 left in stock
Ships Tomorrow
Lowest Price GuaranteeFord 429, 460ci 1968-1994
- Magnum Mechanical Roller Camshaft
- Lift: .663"/.663"
- Duration: 300°/300°
- Lobe Separation Angle: 110°
- RPM Range: 3200-7200
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Ultimate Pro Street cam 4000+ stall/4 speed, 11:1+ compression, radical idle.
Ford 429, 460ci 1968-1994
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.2
Package Length24.3
Weight11.95 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)257
Cam StyleMechanical roller tappet
Grind Number300A-R10
Exh. Duration Advertised (Deg)300
Engine Make/SizeFord 429-460
Intake Valve Lift With Factory Rocker Arm Ratio (I0.663
Int. Duration @ .050 In. (Deg)257
Basic Operating Rpm Range3,200-7,200
Intake Valve Lash0.02 in (0.508 mm)
Intake Valve Lift0.663 in (16.84 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)300
Lobe Separation (Deg)110
Rpm Range3200-7200
Advertised Duration300 int./300 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.663
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.663 int./0.663 exh.
QuantitySold individually
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.663 in (16.84 mm)
Advertised Intake Duration300
Intake Duration At 050 Inch Lift262
Exhaust Duration At 050 Inch Lift262
Advertised Exhaust Duration300
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift262 int./262 exh.
Valve Springs RequiredYes
Vendor Part Number34-710-9
Package Qty1
Package TypeEA
No Questions
No Reviews
