Vehicle Info NeededCOMP CAMSPART NUMBER: 249-34-772-9

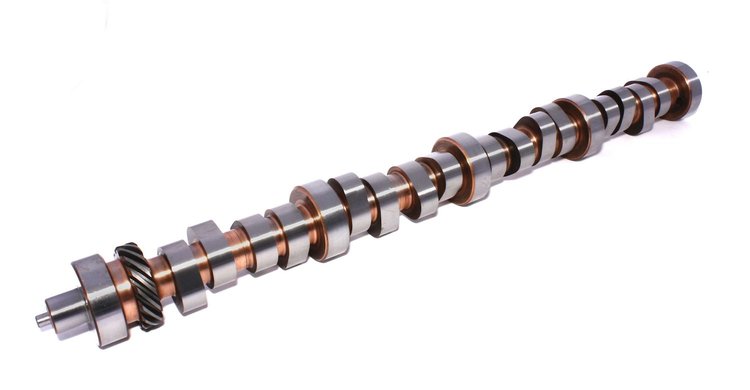

Xtreme Energy Mechanical Roller Camshaft Ford 429, 460ci 1968-94 Lift: .664"/.671"
$55895
Ships on 09/15/2026
Lowest Price GuaranteeFord 429, 460 c.i. 8 CYL. 1968-1994
- Xtreme Energy Mechanical Roller Camshaft
- Lift: .664"/.671"
- Duration: 286°/292°
- Lobe Separation Angle: 110°
- RPM Range: 3000-7000
Mechanical Roller-Great for weekend warrior 3000 stall, needs intake, exhaust, gears.Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Great for weekend warrior, 3000+ stall, needs intake, exhaust, gears.
Ford 429, 460ci 1968-94
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.0
Package Length24.3
Weight12.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)254
Cam StyleMechanical roller tappet
Grind NumberFF XR286 R-10
Exh. Duration Advertised (Deg)292
Engine Make/SizeFord 429-460
Intake Valve Lift With Factory Rocker Arm Ratio (I0.664
Int. Duration @ .050 In. (Deg)248
Basic Operating Rpm Range3,400-6,800
Intake Valve Lash0.016 in (0.406 mm)
Intake Valve Lift0.664 in (16.866 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)286
Lobe Separation (Deg)110
Rpm Range3000-7000
Advertised Duration286 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.671
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.664 int./0.671 exh.
QuantitySold individually
Exhaust Valve Lash0.018 in (0.457 mm)
Exhaust Valve Lift0.671 in (17.043 mm)
Advertised Intake Duration286
Intake Duration At 050 Inch Lift248
Exhaust Duration At 050 Inch Lift254
Advertised Exhaust Duration292
Lifter TypeMechanical Roller
Duration At 050 Inch Lift248 int./254 exh.
Valve Springs RequiredYes
Vendor Part Number34-772-9
Package Qty1
Package TypeEA
