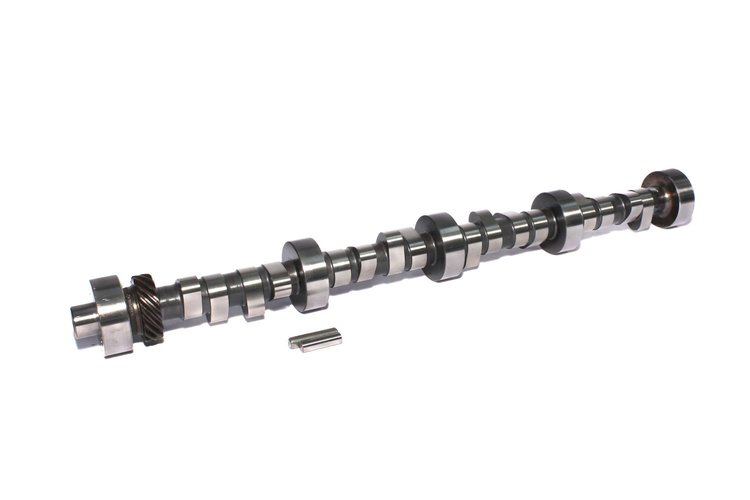

Magnum Hydraulic Roller Camshaft Ford 351W 1969-1995 Retro Fit Lift: .533"/.533"
Product Discontinued
COMP CAMSPART NUMBER: 249-35-422-8

Magnum Hydraulic Roller Camshaft Ford 351W 1969-1995 Retro Fit Lift: .533"/.533"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford 351W 1969-1995
  • Retro-Fit Non-EFI
    • Magnum Hydraulic Roller Camshaft
      Ford 351W 1969-1995 Retro Fit
    • Lift: .533"/.533"
    • Duration: 270°/270°
    • Lobe Separation Angle: 110°
    • RPM Range: 1800-5000

    • For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.
    • Cams Are Very Aggressive
    • Designed For Performance Oriented Vehicles
    • Deliver More Power Than Standard Camshafts
    • 1 Year Limited Warranty

      Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150


      Mild street performance increase. Slight lope at idle. Works with stock converter, best with 1800+ stall and gears.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft
    BrandCOMP CAMS
    Package Height2.9
    Package Width3.1
    Package Length24.1
    Weight7.8 PG
    Part CategoryPerformance Parts
    UsageStreet/Strip
    Intake Valve Lift0.533 in (13.538 mm)
    Int. Duration Advertised (Deg)270
    Exh. Duration @ .050 In. (Deg)215
    Rpm Range1800-5000
    Lifter TypeHydraulic Roller
    Exh. Duration Advertised (Deg)270
    Part FitmentSemi Universal
    Engine Make/SizeFord 351W
    Int. Duration @ .050 In. (Deg)215
    Exhaust Valve Lift0.533 in (13.538 mm)
    Vendor Part Number35-422-8
    Package Qty1
    Package TypeEA
