Vehicle Info Needed

COMP CAMSPART NUMBER: 249-35-609-5

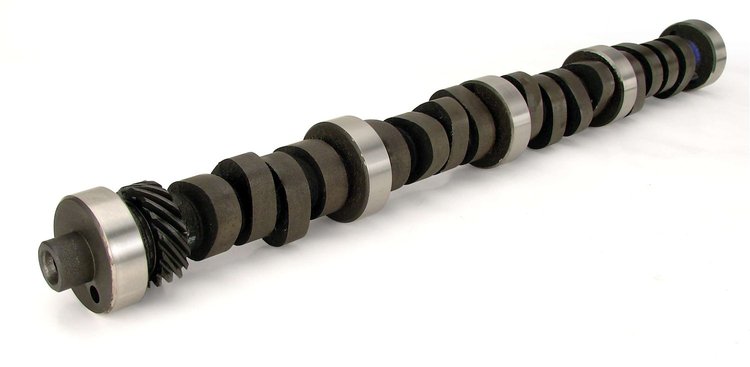

Comp Cams Oval Track Camshafts

Name: Comp Cams Oval Track Camshafts
Brand: COMP CAMS
SKU: 249-35-609-5
Price: 325.95 USD
Availability: InStock

^$325⁹⁵

1 left in stock

Ships Today

Lowest Price Guarantee

Ford 351W 1969-1996

.568"/.592"

285°/295°

106°

3000-6500

Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft

BrandCOMP CAMS

Package Height2.9

Package Width4.7

Package Length24.3

Weight9.45 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)260

Cam StyleMechanical flat tappet

Grind NumberFW 285B-6

Exh. Duration Advertised (Deg)295-1

Engine Make/SizeFord 351W

Intake Valve Lift With Factory Rocker Arm Ratio (I0.568

Int. Duration @ .050 In. (Deg)250

Basic Operating Rpm Range3,000-6,500

Intake Valve Lift0.568 in (14.427 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)285-1

Lobe Separation (Deg)106

Rpm Range3000-6500

Advertised Duration285 int./295 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.592

UsageStrip

Valve Lift With Factory Rocker Arm Ratio0.568 int./0.592 exh.

QuantitySold individually

Exhaust Valve Lift0.592 in (15.037 mm)

Advertised Intake Duration285

Intake Duration At 050 Inch Lift250

Exhaust Duration At 050 Inch Lift260

Advertised Exhaust Duration295

Lifter TypeMechanical Flat Tappet

Part FitmentSemi Universal

Duration At 050 Inch Lift250 int./260 exh.

Valve Springs RequiredYes

Vendor Part Number35-609-5

Package Qty1

Package TypeEA
