Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-620-5

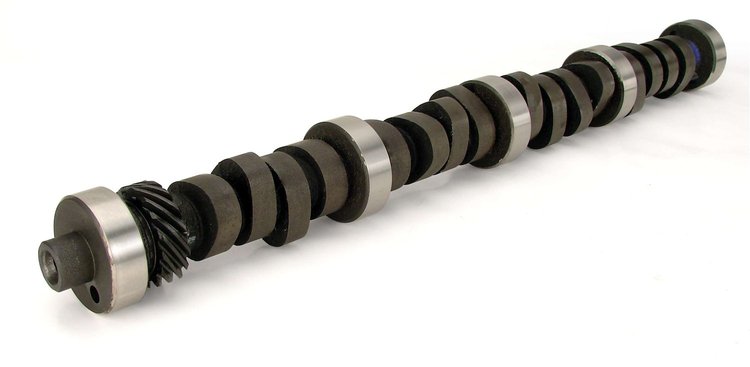

Comp Cams Oval Track Camshafts
$32595
Ships on 09/08/2026
Lowest Price GuaranteeFord 351W 1969-1996
- Oval Track Mechanical Flat Tappet Camshaft
Ford 351W 1969-1996
Lift: .568"/.584"
Duration: 268°/276°
Lobe Separation Angle: 106°
RPM Range: 2500-6500
Works well in restricted engines with stock manifolds, 2 barrel carburetor.
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Works well in restricted engines with stock manifolds, 2 BBL carb.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.0
Package Length24.1
Weight8.9 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleMechanical flat tappet
Grind NumberFW 268FLS-6
Exh. Duration Advertised (Deg)276
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.568
Int. Duration @ .050 In. (Deg)238
Basic Operating Rpm Range2,500-6,500
Intake Valve Lash0.018 in (0.457 mm)
Intake Valve Lift0.568 in (14.427 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)268
Lobe Separation (Deg)106
Rpm Range2500-6500
Advertised Duration268 int./276 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.584
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.568 int./0.584 exh.
QuantitySold individually
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.584 in (14.834 mm)
Advertised Intake Duration268
Intake Duration At 050 Inch Lift238
Exhaust Duration At 050 Inch Lift246
Advertised Exhaust Duration276
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift238 int./246 exh.
Valve Springs RequiredYes
Vendor Part Number35-620-5
Package Qty1
Package TypeEA
