Product Discontinued
COMP CAMSPART NUMBER: 249-35-770-8

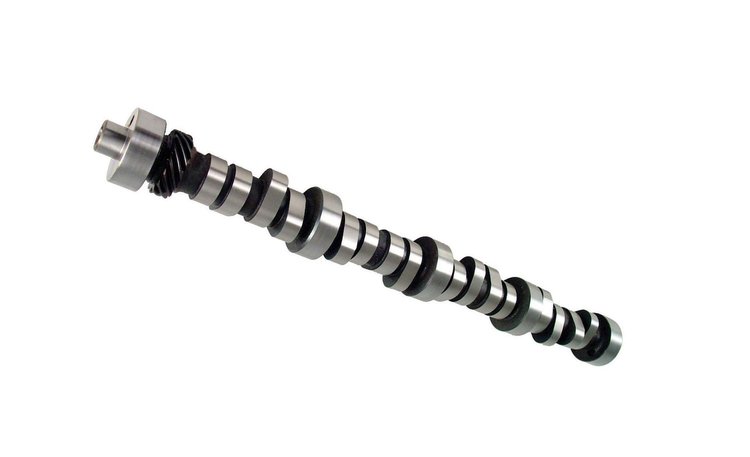

Xtreme Energy Mechanical Roller Camshaft Ford 351W 1969-96 Lift: .602"/.608"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 351W 1969-96
- Xtreme Energy Mechanical Roller Camshaft
- Lift: .602"/.608"
- Duration: 274°/280°
- Lobe Separation Angle: 110°
- RPM Range: 2200-6200
Mechanical Roller-Great for Power Touring. Needs 2500 stall, easy on parts. Very reliable power. Rough idle.Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Great for power touring. Needs 2500+ stall, easy on parts. Very reliable power. Rough idle.
Ford 351W 1969-96
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight9.62 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)242
Cam StyleMechanical roller tappet
Grind NumberFW XR274 R-10
Exh. Duration Advertised (Deg)280
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.602
Int. Duration @ .050 In. (Deg)236
Basic Operating Rpm Range2,200-6,200
Intake Valve Lash0.016 in (0.406 mm)
Intake Valve Lift0.602 in (15.291 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)274
Lobe Separation (Deg)110
Rpm Range2200-6200
Advertised Duration274 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.608
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.602 int./0.608 exh.
QuantitySold individually
Exhaust Valve Lash0.018 in (0.457 mm)
Exhaust Valve Lift0.608 in (15.443 mm)
Advertised Intake Duration274
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift242
Advertised Exhaust Duration280
Lifter TypeMechanical Roller
Duration At 050 Inch Lift236 int./242 exh.
Valve Springs RequiredYes
Vendor Part Number35-770-8
Package Qty1
Package TypeEA
