Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-773-8

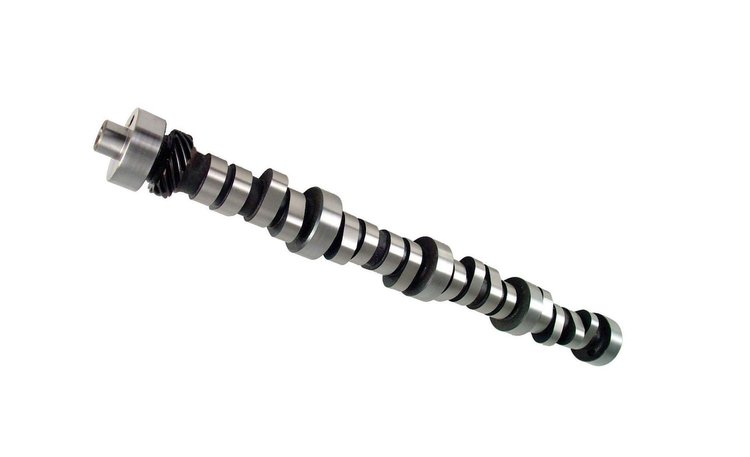

Xtreme Energy Mechanical Roller Camshaft Ford 351W 1969-96 Lift: .621"/.627"
$57795
2 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeFord 351W 1969-96
- Xtreme Energy Mechanical Roller Camshaft
- Lift: .621"/.627"
- Duration: 292°/298°
- Lobe Separation Angle: 110°
- RPM Range: 3200-7200
Best for Pro Street. Needs good intake and exhaust, 11:1 compression or more and 3500 stall converter.Operating Range: 3200-7200 RPM Duration Advertised: 292° Intake / 298° Exhaust Duration @ .050' Lift: 254° Intake / 260° Exhaust Valve Lift w/1.6 Rockers: .621' Intake / .627' Exhaust Valve Setting: .016' Intake / .018' Exhaust Lobe Separation Angle: 110° Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Best for Pro Street. Needs aftermarket intake and exhaust, 11:1+ compression and 3500 stall.
Ford 351W 1969-96
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.0
Package Length24.0
Weight9.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)260
Cam StyleMechanical roller tappet
Grind NumberFW XR292 R-10
Exh. Duration Advertised (Deg)298
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.621
Int. Duration @ .050 In. (Deg)254
Basic Operating Rpm Range3,200-7,200
Intake Valve Lash0.016 in (0.406 mm)
Intake Valve Lift0.621 in (15.773 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range3200-7200
Advertised Duration292 int./298 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.627
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.621 int./0.627 exh.
QuantitySold individually
Exhaust Valve Lash0.018 in (0.457 mm)
Exhaust Valve Lift0.627 in (15.926 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift254
Exhaust Duration At 050 Inch Lift260
Advertised Exhaust Duration298
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift254 int./260 exh.
Valve Springs RequiredYes
Vendor Part Number35-773-8
Package Qty1
Package TypeEA
