Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-780-9

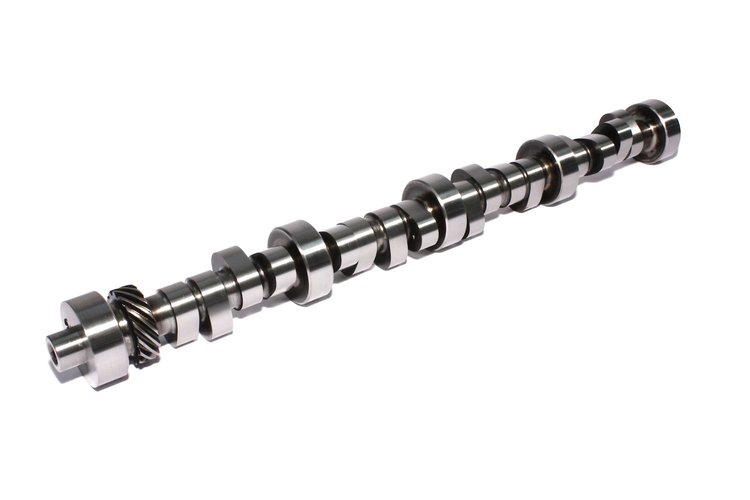

Drag Race Mechanical Roller Camshaft Lift .696"/.672" Duration 298/312 RPM Range 4200-7200
$55895
4 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeFord 351W 8 cyl. 1969-1996
- Drag Race Mechanical Roller Camshaft
Lift .696"/.672"
Duration 298/312
RPM Range 4200-7200
Mechanical Roller-Drag Race for 351-377 c.i. motor 12:1 compression 4500 stall.
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
351-377c.i. motor, 12:1+ compression, 4500+ stall.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width13.6
Package Length24.4
Weight9.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)275
Cam StyleMechanical roller tappet
Grind NumberFW 298DR-6
Exh. Duration Advertised (Deg)312
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.696
Int. Duration @ .050 In. (Deg)268
Basic Operating Rpm Range4,200-7,200
Intake Valve Lash0.02 in (0.508 mm)
Intake Valve Lift0.696 in (17.678 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)298
Lobe Separation (Deg)106
Rpm Range4200-7200
Advertised Duration298 int./312 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.672
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.696 int./0.672 exh.
QuantitySold individually
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.672 in (17.069 mm)
Advertised Intake Duration298
Intake Duration At 050 Inch Lift268
Exhaust Duration At 050 Inch Lift275
Advertised Exhaust Duration312
Lifter TypeMechanical Roller
Duration At 050 Inch Lift268 int./275 exh.
Valve Springs RequiredYes
Vendor Part Number35-780-9
Package Qty1
Package TypeEA
