• Works w/OEM Valve Springs

• Minimal Tune may be Required for Max HP

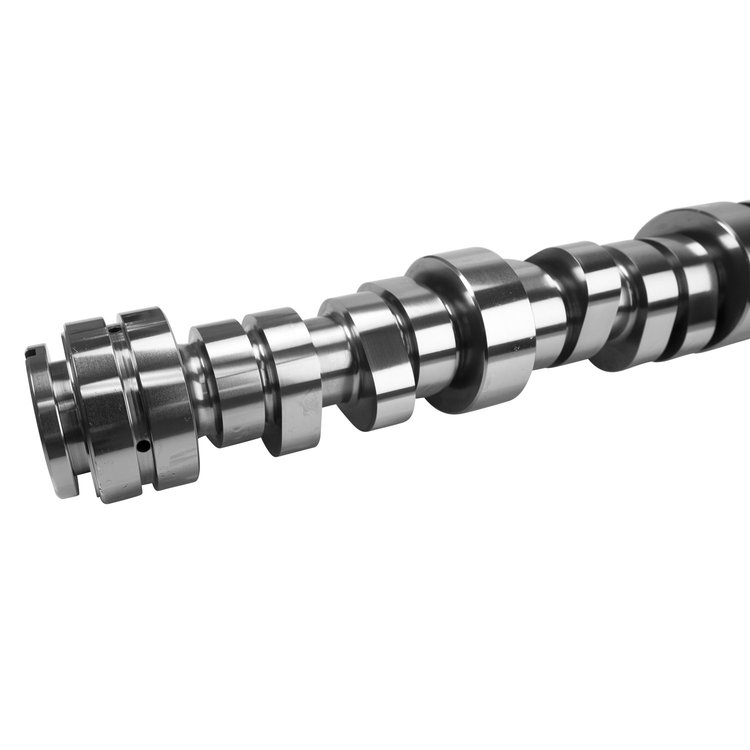

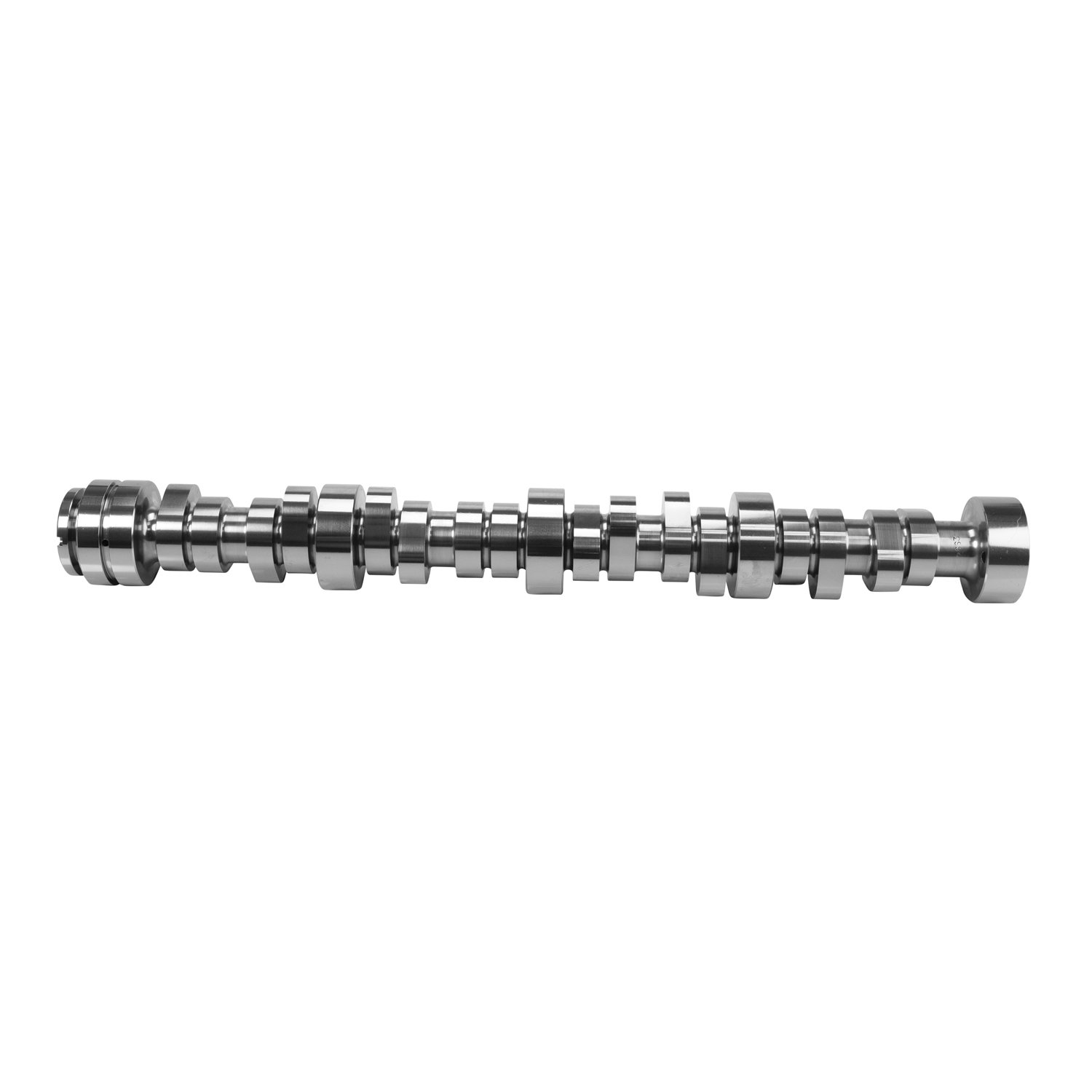

Comp Cams 405-201-17 Stage 1 Hydraulic Roller Camshaft Features:

• Drop-in upgrade for improved drivability and throttle response
• Increased torque across entire RPM range
• Utilizes full cam phaser sweep for performance and mileage
• No adjustment required to OEM cam phasing or ignition timing
• Minimal ECU tuning may be required to meet maximum gains

Comp Cams 405-201-17 Stage 1 Hydraulic Roller Camshaft Specs:

• Computer Controlled Compatible: Yes
• Valve Springs Required: No
• Maximum Advance at Camshaft: 16 deg
• RPM Operating Range: 1500-6300
• Grind Number: HTR275HR21
• Cam Type: Hydraulic Roller
• Camshaft Series: Godzilla
• Usage: Street
• Advertised Intake Duration: 275 deg.
• Advertised Exhaust Duration: 288 deg.
• Intake Duration at .050 in. Lift: 217 deg.
• Exhaust Duration at .050 in. Lift: 229 deg.
• Intake Valve Lift: 0.598 in.
• Exhaust Valve Lift: 0.605 in.
• Lobe Lift Intake: 0.332 in.
• Lobe Lift Exhaust: 0.336 in.
• Lobe Separation: 121
• Intake Centerline: 105
• Exhaust Close ATDC: 23 deg.
• Intake Open BTDC: 3 deg.
• Exhaust Open BBDC: 72 deg.
• Intake Close ABDC: 34 deg.
• Direct Injection Compatible: No
• VVT Compatible: Yes
• Phaser Requirement: None

Emissions Note:

Thispart is only legal for sale and use on Uncontrolled (Non-Emissions Controlled)Vehicles or on vehicles used solely for the purposes of closed competitionracing.

CLICK THIS LINK FOR IMPORTANTCARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
