• Works w/OEM Valve Springs

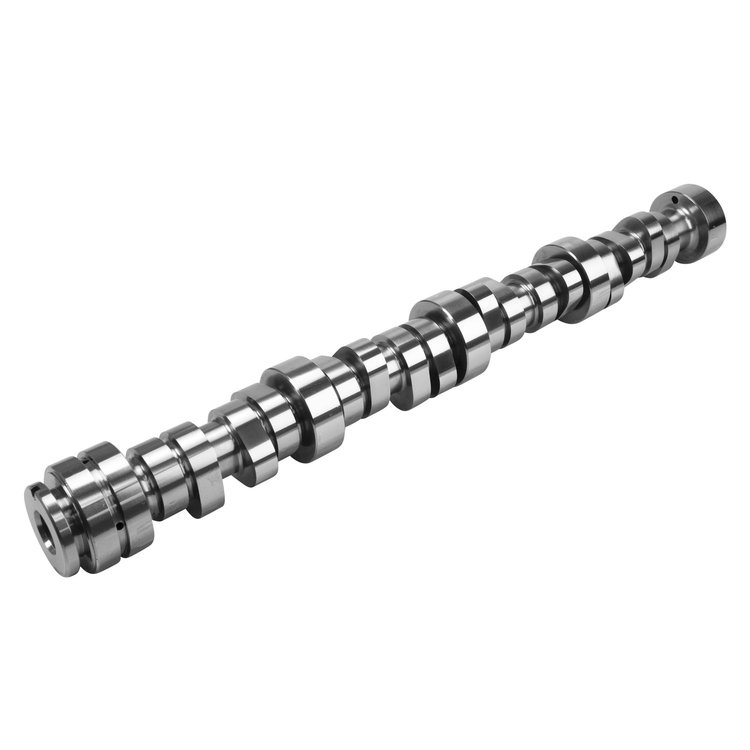

Comp Cams 405-203-17 Stage 2 Hydraulic Roller Camshaft Features:

• Drop-in upgrade for improved drivability and throttle response
• Increased torque across entire RPM range
• Requires Comp Cams Phaser Limiter 5473 (sold separately)
• Testing with the phaser limiter kit resulted in 75 + HP gain
• ECU tuning required

Comp Cams 405-203-17 Stage 2 Hydraulic Roller Camshaft Specs:

• Computer Controlled Compatible: Yes
• Valve Springs Required: No
• Maximum Advance at Camshaft: 7 deg
• RPM Operating Range: 1800-6500
• Grind Number: NSR279HR12
• Cam Type: Hydraulic Roller
• Camshaft Series: Godzilla
• Usage: Street
• Advertised Intake Duration: 285 deg.
• Advertised Exhaust Duration: 292 deg.
• Intake Duration at .050 in. Lift: 221 deg.
• Exhaust Duration at .050 in. Lift: 231 deg.
• Intake Valve Lift: 0.598 in.
• Exhaust Valve Lift: 0.607 in.
• Lobe Lift Intake: 0.332 in.
• Lobe Lift Exhaust: 0.337 in.
• Lobe Separation: 112
• Intake Centerline: 105
• Exhaust Close ATDC: 4 deg.
• Intake Open BTDC: 5 deg.
• Exhaust Open BBDC: 55 deg.
• Intake Close ABDC: 346 deg.
• Direct Injection Compatible: No
• VVT Compatible: Yes
• Phaser Requirement: Limiter

Emissions Note:

Thispart is only legal for sale and use on Uncontrolled (Non-Emissions Controlled)Vehicles or on vehicles used solely for the purposes of closed competitionracing.

CLICK THIS LINK FOR IMPORTANTCARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
