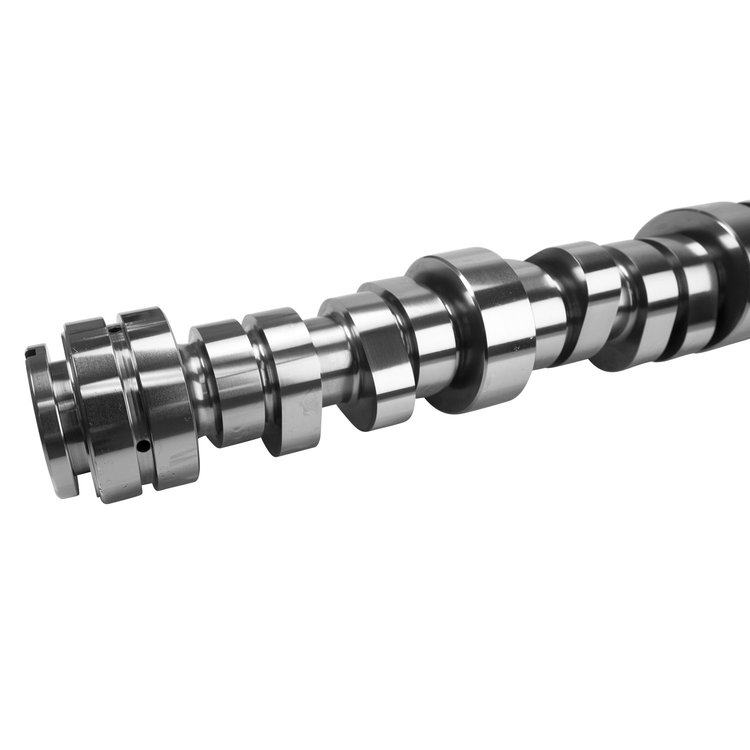

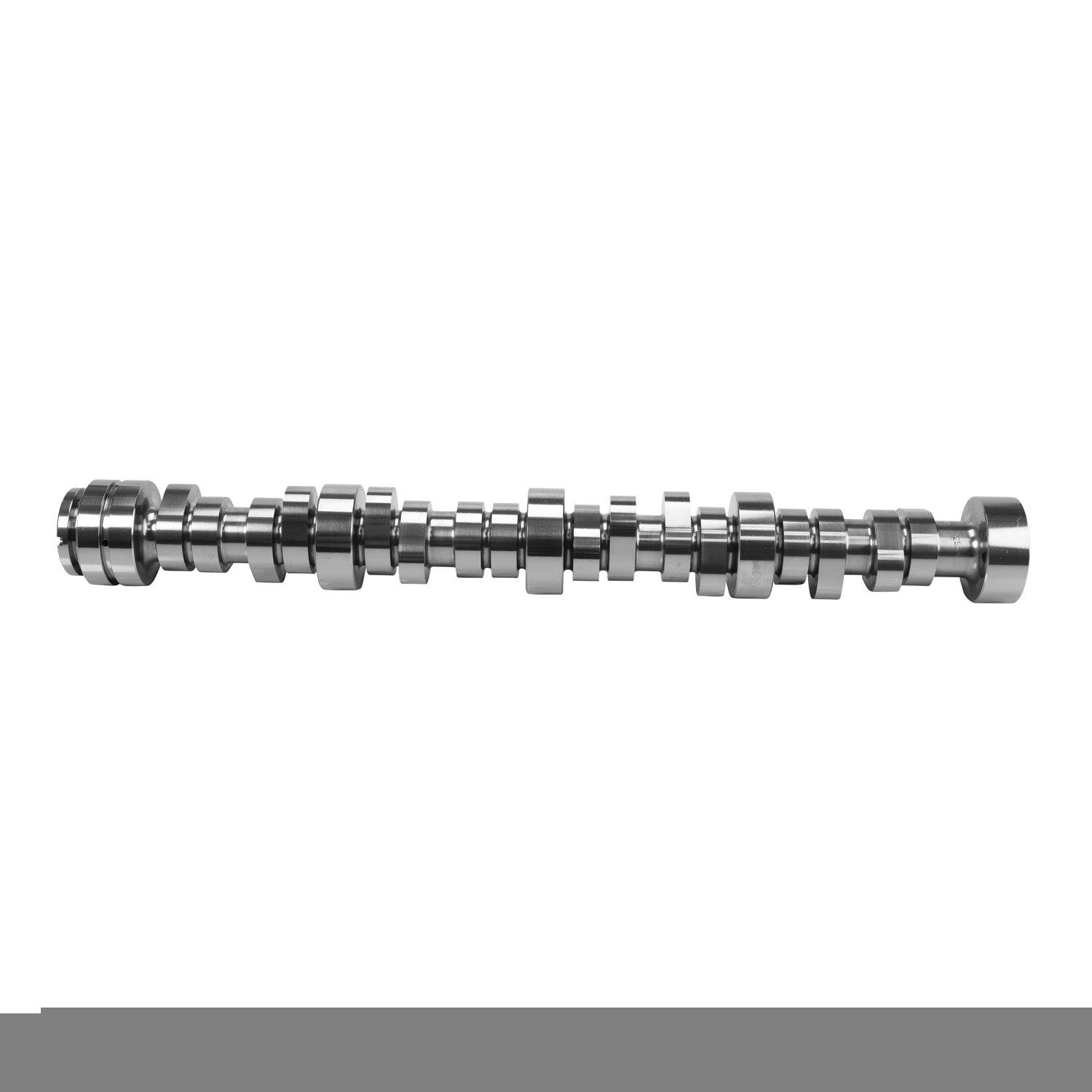

405-205-17 Stage 3 Hydraulic Roller Camshaft for Ford 7.3L Godzilla Engines
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-405-205-17

405-205-17 Stage 3 Hydraulic Roller Camshaft for Ford 7.3L Godzilla Engines

$71195
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

5473 Cam Phaser Limiter Kit for Ford 7.3L Godzilla Engines

COMP CAMS

5473 Cam Phaser Limiter Kit for Ford 7.3L Godzilla Engines

Part Number : 249-5473
$12995
5474 Cam Phaser Lockout Kit for Ford 7.3L Godzilla Engines

COMP CAMS

5474 Cam Phaser Lockout Kit for Ford 7.3L Godzilla Engines

Part Number : 249-5474
$12395
5475 Cam Phaser Socket Tool for Ford 7.3L Godzilla Engines

COMP CAMS

5475 Cam Phaser Socket Tool for Ford 7.3L Godzilla Engines

Part Number : 249-5475
$3299
918073 Super Damper Ford 7.3L Godzilla

ATI

918073 Super Damper Ford 7.3L Godzilla

Part Number : 085-918073
$57828

Stage 3
Stage 3 Hydraulic Roller Camshaft
  • Ford 7.3L Godzilla Engine
  • Requires Valve Spring Kit
  • Requires ECU Tune
  • Requires Cam Phaser Limiter
  • Valve Lift: .671/.671 in.
  • Duration @ .050: 237/250

    Comp Cams 405-205-17 Stage 3 Hydraulic Roller Camshaft Features:

    • Intended for engine swaps into lighter vehicles
    • Capable of over 600 horsepower on pump gas
    • Requires Comp Cams Valve Spring Kit 7230GCS-KIT (sold separately)
    • Requires Comp Cams Phaser Limiter 5473 (sold separately)
    • Testing with the phaser limiter kit resulted in 100 + HP, 25 ft.-lb torque gains
    • ECU tuning required

    Comp Cams 405-205-17 Stage 3 Hydraulic Roller Camshaft Specs:

    • Computer Controlled Compatible: Yes
    • Valve Springs Required: Yes
    • Maximum Advance at Camshaft: 5 deg
    • RPM Operating Range: 2500-6700
    • Grind Number: GLS295HR17
    • Cam Type: Hydraulic Roller
    • Camshaft Series: Godzilla
    • Usage: Street
    • Advertised Intake Duration: 295 deg.
    • Advertised Exhaust Duration: 308 deg.
    • Intake Duration at .050 in. Lift: 237 deg.
    • Exhaust Duration at .050 in. Lift: 250 deg.
    • Intake Valve Lift: 0.671 in.
    • Exhaust Valve Lift: 0.671 in.
    • Lobe Lift Intake: 0.373 in.
    • Lobe Lift Exhaust: 0.373 in.
    • Lobe Separation: 117
    • Intake Centerline: 112
    • Exhaust Close ATDC: 3 deg.
    • Intake Open BTDC: 6 deg.
    • Exhaust Open BBDC: 67 deg.
    • Intake Close ABDC: 51 deg.
    • Direct Injection Compatible: No
    • VVT Compatible: Yes
    • Phaser Requirement: Limiter

    Emissions Note:

    Thispart is only legal for sale and use on Uncontrolled (Non-Emissions Controlled)Vehicles or on vehicles used solely for the purposes of closed competitionracing.

    CLICK THIS LINK FOR IMPORTANTCARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Bring Godzilla to Life

      Comp Cams Performance Camshafts for Ford 7.3L Godzilla Engines improve engine horsepower and torque. Choose between a moderate power increase, torque for towing, or all-out horsepower.

    Part TypeCamshaft
    Product LineComp Cams Performance Camshafts for Ford 7.3L Godzilla Engines
    BrandCOMP CAMS
    Package Height2.7
    Package Width3.0
    Package Length24.3
    Weight12.59 PG
    Part CategoryPerformance Parts
    Lobe Separation (Deg)117
    QuantitySold individually.
    Lifter TypeHydraulic Roller
    Part FitmentSemi Universal
    Computer Controlled CompatibleYes
    Engine Make/SizeFord 7.3L Godzilla
    Valve Springs RequiredYes
    Vendor Part Number405-205-17
    Package Qty1
    Package TypeEA
