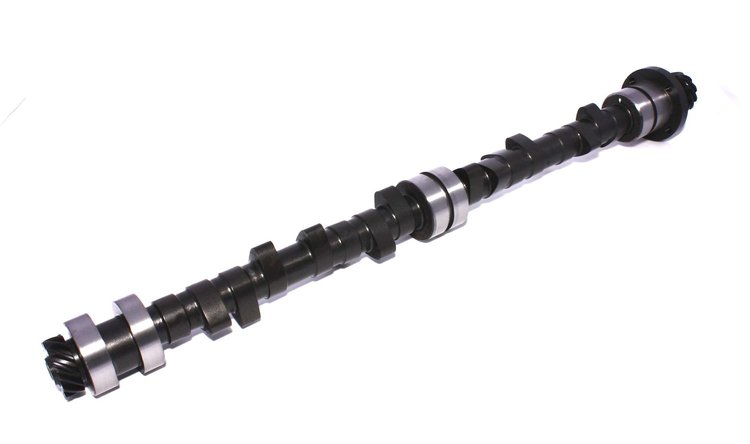

Thumpr Mechanical Flat Tappet Camshaft Ford 239-255ci Flathead 1949-53 Lift: .368"/.364"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-41-601-7

Thumpr Mechanical Flat Tappet Camshaft Ford 239-255ci Flathead 1949-53 Lift: .368"/.364"

$68995
ShippingShips on Sep 04, 2026
Lowest PriceLowest Price Guarantee

Ford 239-255ci Flathead 1949-53
  • (Classic Thumpr)
    • Thumpr Mechanical Flat Tappet Camshaft
      Ford 239-255ci Flathead 1949-53
    • Lift: .368"/.364"
    • Duration: 275°/307°
    • Lobe Separation Angle: 107°
    • RPM Range: 2200-6100

    • High-performance street/strip
    • Needs 9:1 compression, 2500+ stall, intake, gears, and headers
    • Rough idle

      Flathead; Ford 239; Ford 255


      Performance street/strip, needs higher compression and aftermarket heads, rough idle.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Thumpr Camshafts are the hottest cams to hit the streets in more than a decade. Applying a design originally for endurance racing, they combine early exhaust valve opening, long exhaust duration, and generous intake/exhaust overlap. Best of all, Thumprs will not negatively impact power output or streetability.

    Features:

    • Three unique cam designs for each application that deliver excellent horsepower gains and broad torque curve; perfect choice for muscle cars and street rods
    • Early intake valve opening and long exhaust duration create optimum overlap for powerful, hard-hitting exhaust note
    • Best with aftermarket converters and more rear gear
    Part TypeCamshaft
    Product LineComp Cams Thumpr Mechanical Flat Tappet Cams
    BrandCOMP CAMS
    Package Height2.75
    Package Width3.0
    Package Length24.5
    Weight9.91 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)249
    Cam StyleMechanical flat tappet
    Grind Number275TS7
    Exh. Duration Advertised (Deg)307
    Engine Make/SizeFord Flat Head 239-255
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.368
    Int. Duration @ .050 In. (Deg)235
    Basic Operating Rpm Range2,200-6,100
    Intake Valve Lash0.012 in (0.305 mm)
    Intake Valve Lift0.368 in (9.347 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)275
    Lobe Separation (Deg)107
    Rpm Range2200-6100
    Advertised Duration275 int./307 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.364
    UsageStreet/Performance
    Valve Lift With Factory Rocker Arm Ratio0.368 int./0.364 exh.
    QuantitySold individually
    Exhaust Valve Lash0.014 in (0.356 mm)
    Exhaust Valve Lift0.364 in (9.246 mm)
    Advertised Intake Duration275
    Intake Duration At 050 Inch Lift235
    Exhaust Duration At 050 Inch Lift249
    Advertised Exhaust Duration307
    Lifter TypeMechanical Flat Tappet
    Part FitmentSemi Universal
    Duration At 050 Inch Lift235 int./249 exh.
    Valve Springs RequiredNo
    Vendor Part Number41-601-7
    Package Qty1
    Package TypeEA
