Vehicle Info NeededCOMP CAMSPART NUMBER: 249-42-236-4

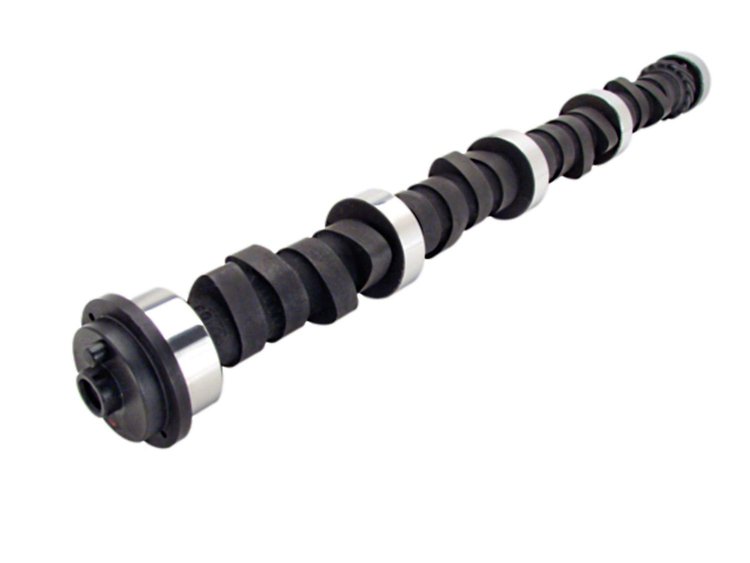

Magnum 292H Hydraulic Flat Tappet Camshaft Lift .518"/.518" Duration 292°/292° RPM Range 2500-6500
$30995
Ships on 09/15/2026
Lowest Price GuaranteeOldsmobile 260-455 c.i. 8 cyl. 1967-1990
- Magnum 292H Hydraulic Flat Tappet Camshaft
Lift .518"/.518"
Duration 292°/292°
RPM Range 2500-6500
Hydraulic-Street / Strip, 3000+ stall, with aftermarket manifolds, lower gears, increased compression. Very rough idle.
Olds; Oldsmobile; Cutlass; Cutlass Supreme; 98; Calais; Ciera; Custom Cruiser; Starfire; Firenza; 88; Rocket; Rocket 88; Vista Cruiser; Delta 88; 260; 442; 307; 350; 403; 400; 425; 455
Street/strip, 3000+ stall, with aftermarket manifolds, lower gears, increased compression. Very rough idle. Performance cam for B impeller in jet boat. River or bracket racing.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.2
Package Length24.1
Weight10.35 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberOL 292H-10
Exh. Duration Advertised (Deg)292
Engine Make/SizeOlds 260-455
Intake Valve Lift With Factory Rocker Arm Ratio (I0.518
Int. Duration @ .050 In. (Deg)244
Basic Operating Rpm Range2,500-6,500
Intake Valve Lift0.518 in (13.157 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2500-6500
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.518
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.518 int./0.518 exh.
QuantitySold individually
Exhaust Valve Lift0.518 in (13.157 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number42-236-4
Package Qty1
Package TypeEA
