Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

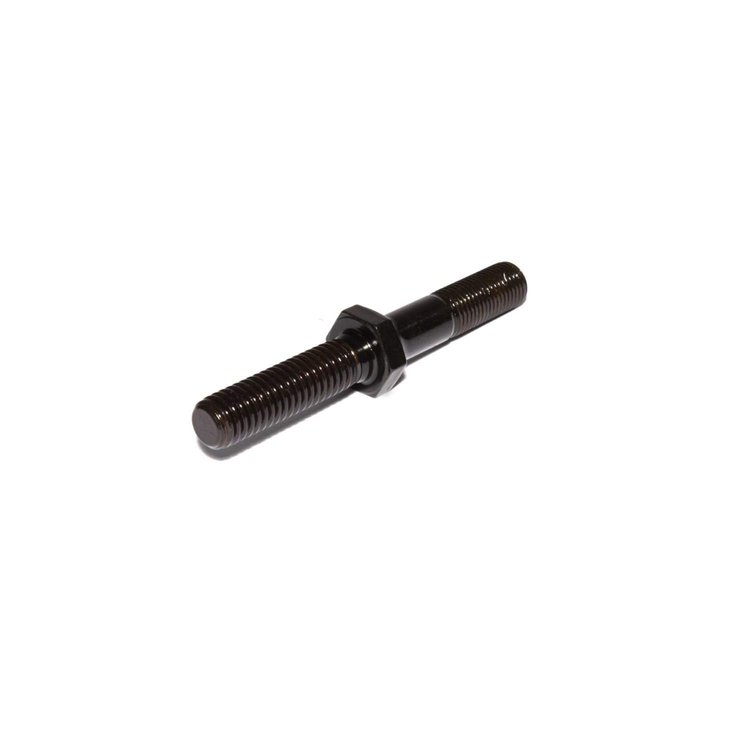

Hi-Tech Race Rocker Arm Studs
- Hi-Tech Race Rocker Stud
- Stud Diameter: 7/16"
- Effective Stud Length: 2.0"
- Base Thread Diameter: 7/16
- Base Thread Length: 1.680"
- Big Block Chevy 396-454 with Alum Head
- 1/pkg
This stud has a thin jam nut for rocker clearance, rolled threads for maximum contact and a ground-flat top so accurate valve adjustment can be achieved and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area.
Features: - Generous radii
- Black oxide finish
Designed for exhaust valves on Chevrolet Big Chevrolet engines with aluminum heads, this Hi-Tech stud features a 7/16" base thread, 7/16" rocker thread and a 2.000" effective stud length.
Part TypeRocker Arm Stud
BrandCOMP CAMS
Package Height2.0
Package Width2.5
Package Length4.0
Weight1.0 PG
Part CategoryPerformance Parts
Base Thread Size (In.)7/16-14
Guideplate Locator ShankYes
Rocker Arm Nut Thread Size (In.)7/16"-20
QuantitySold individually
Engine Make/SizeChevy Big Block
Effective Stud Length2 in (50.8 mm)
Base Thread Length1.68 in (42.672 mm)
Vendor Part Number4507-1
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
