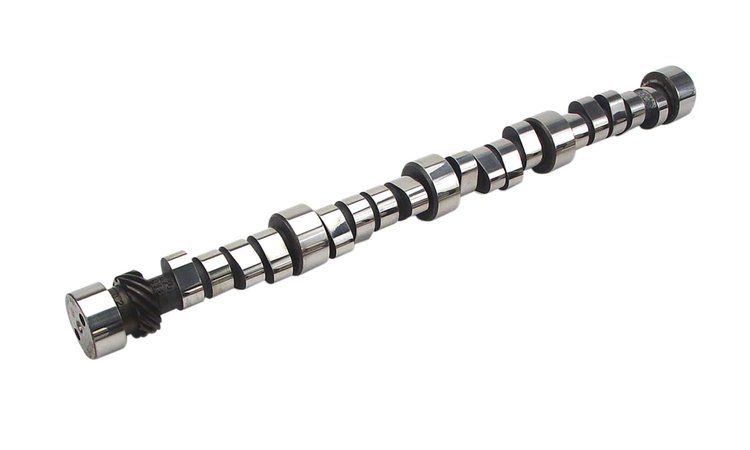

Tri-Power Xtreme Hydraulic Roller Camshaft GM 8100/8.1L 2001-Present Lift: .513"/.507"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-46-535-9

Tri-Power Xtreme Hydraulic Roller Camshaft GM 8100/8.1L 2001-Present Lift: .513"/.507"

$55895
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

GM 8100/8.1L 2001-Present
    Tri-Power Xtreme Hydraulic Roller Camshaft
    GM 8100/8.1L 2001-Present
  • Lift: .513"/.507"
  • Duration: 262°/270°
  • Lobe Separation Angle: 114°
  • RPM Range: 1000-5000

  • Optimized Fuel Mileage
  • Good Torque Horse Power
  • 1 Year Limited Warranty
    Optimized horsepower with good torque and average fuel economy.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight10.4 PG
Part CategoryPerformance Parts
UsageStreet/Performance
Intake Valve Lift0.513 in (13.03 mm)
Int. Duration Advertised (Deg)262
Exh. Duration @ .050 In. (Deg)218
Rpm Range1000-5000
Lifter TypeHydraulic Roller
Exh. Duration Advertised (Deg)270
Engine Make/SizeChevy 496
Int. Duration @ .050 In. (Deg)210
Exhaust Valve Lift0.507 in (12.878 mm)
Vendor Part Number46-535-9
Package Qty1
Package TypeEA
