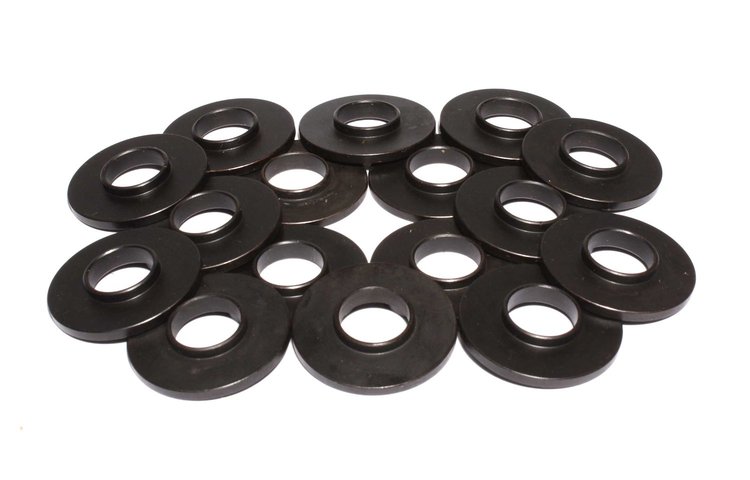

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-4690-16
Spring ID Locators Locator Thickness:.120"
$7295
2 left in stock
Ships Today
Lowest Price GuaranteeSpring I.D. Locators
- Spring ID Locators
- Locator Thickness:.120"
- Locator O.D:.1.253''
- Locator I.D: .780''
- Valve Spring O.D: N/A
- Valve Spring I.D: .878"
- 16/pk
- Spring Locator
- 1 Year Limited Warranty
Made from hardened steel, these locators use an inboard locating shoulder to center the seat and hold the spring in place. The 4690 seat's 1.253" OD works well with our 26918 beehive valve springs.
Part TypeValve Spring Seat
BrandCOMP CAMS
Package Height2.0
Package Width4.3
Package Length6.7
Weight0.55 PG
Part CategoryPerformance Parts
Outside Diameter Of Outer Spring1.25 in (31.8 mm)
Locator MaterialSteel
Locating Shoulder TypeInside
Inside Diameter0.78 in (19.812 mm)
QuantitySold as a set of 16
Locator Thickness0.12 in (3.048 mm)
Part FitmentSemi Universal
Outside Diameter1.253 in (31.8 mm)
Inside Diameter Of Inner Spring0.878 in (22.301 mm)
Vendor Part Number4690-16
Package Qty1
Package TypeEA
