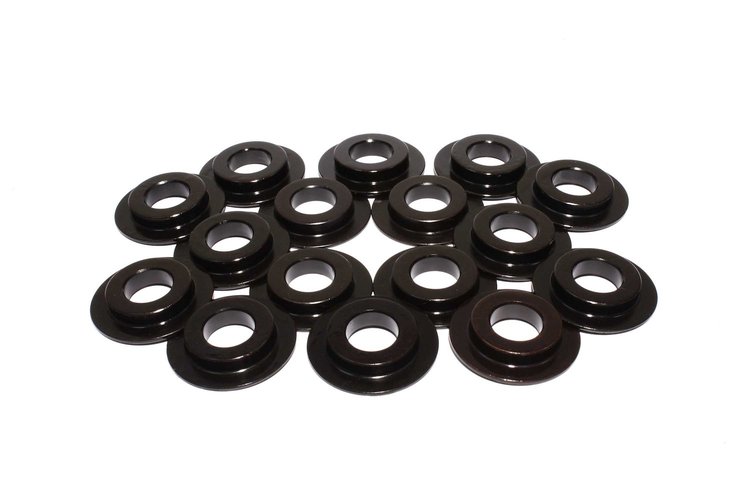

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-4696-16
Spring ID Locators Locator Thickness:.60"
$7295
Ships Tomorrow
Lowest Price GuaranteeSpring I.D. Locators
- Spring ID Locators
- Locator Thickness:.60"
- Locator O.D:.1.510''
- Locator I.D: .570''
- Valve Spring O.D: N/A
- Valve Spring I.D: .970"
- 16/pk
Designed for Beehive Springs #249-62120-16
Made from hardened steel, these locators use an inboard locating shoulder to center the seat and hold the spring in place. The 4696 seat's 1.510" OD works well with our 26120 and 26056 valve springs in .570" OD Guide applications.
Part TypeValve Spring Seat
BrandCOMP CAMS
Package Height1.5
Package Width5.6
Package Length8.8
Weight0.97 PG
Part CategoryPerformance Parts
Locator MaterialSteel
Locating Shoulder TypeInside
Inside Diameter0.57 in (14.478 mm)
QuantitySold as a set of 16
Locator Thickness0.06 in (1.524 mm)
Part FitmentSemi Universal
Outside Diameter1.51 in (38.4 mm)
Inside Diameter Of Inner Spring0.97 in (24.638 mm)
Vendor Part Number4696-16
Package Qty1
Package TypeEA
