Vehicle Info NeededCOMP CAMSPART NUMBER: 249-4706-16

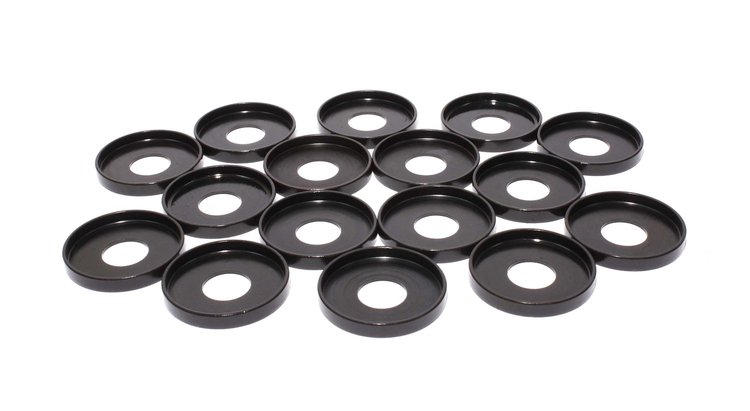

Spring Locators Cups Locator Thickness:.060"
$7295
Ships on Sep 03, 2026
Lowest Price GuaranteeSpring O.D. Locators Cups
- Spring Locators Cups
- Locator Thickness:.060"
- Locator O.D:.1.830''
- Locator I.D: .640''
- Valve Spring O.D: 1.740''
- Valve Spring I.D: N/A
- 16/pkg
- Spring Seat Cup
- 1 Year Limited Warranty
Constructed from hardened steel alloy, COMP's locator cups handle high RPM and extreme spring pressures while holding the spring. Our 4706 locator features a 1.830" OD with a .640" ID that works with a number of our valve springs.
Part TypeValve Spring Seat
BrandCOMP CAMS
Package Height2.1
Package Width2.8
Package Length4.1
Weight0.92 PG
Part CategoryPerformance Parts
Outside Diameter Of Outer Spring1.74 in (44.2 mm)
Locator MaterialSteel
Locating Shoulder TypeOutside
Inside Diameter0.64 in (16.256 mm)
QuantitySold as a set of 16
Locator Thickness0.06 in (1.524 mm)
Part FitmentSemi Universal
Outside Diameter1.83 in (46.5 mm)
Vendor Part Number4706-16
Package Qty1
Package TypeEA
