Vehicle Info NeededCOMP CAMSPART NUMBER: 249-4746-100
Valve Spring Shim Thickness: .030"
$7095
Ships on Oct 28, 2026
Lowest Price GuaranteeCurrently Unavailable
This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

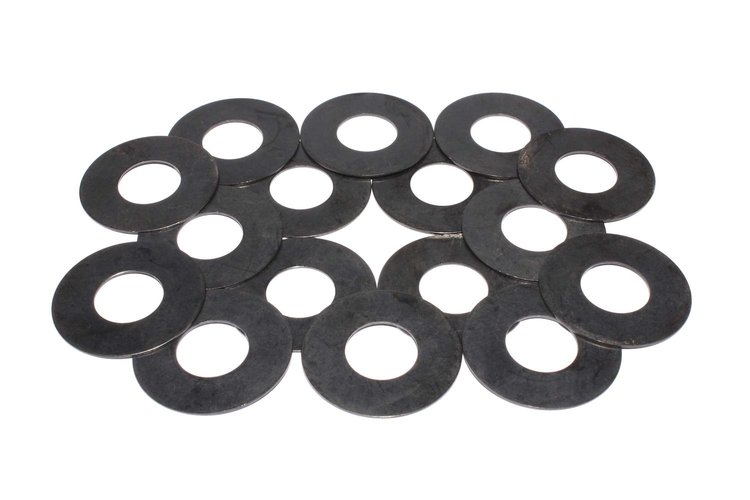

Valve Spring Shims
- Valve Spring Shim
- Thickness: .030''
- Outside Diameter: 1.640''
- Inside Diameter: .635''
- 100/pkg
- Used To Equalize
- High Quality Shim Stock
- Heat Treated
- 1 Year Limited Warranty
Valve Spring Shim; Spring Shim; Shims; Installed Height
- When setting the spring height, shims must be used to equalize the installed height of the valve spring. Comp Cams spring shims are made of the highest quality shim stock and heat treated to stand up to the immense pounding of the radical lobes of today's cams.
- Equalize installed height of valve spring
- Available in three different thicknesses to help achieve proper valve spring height
- Shim kits contain (16) pieces of each thickness listed
Features:
Part TypeValve Spring Shim
Product LineComp Cams Valve Spring Shims
BrandCOMP CAMS
Package Height2.75
Package Width6.31
Package Length12.0
Weight1.79 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Diameter Outside1.64 in (41.656 mm)
Vendor Part Number4746-100
Package Qty1
Package TypeEA
