Vehicle Info NeededCOMP CAMSPART NUMBER: 249-4754

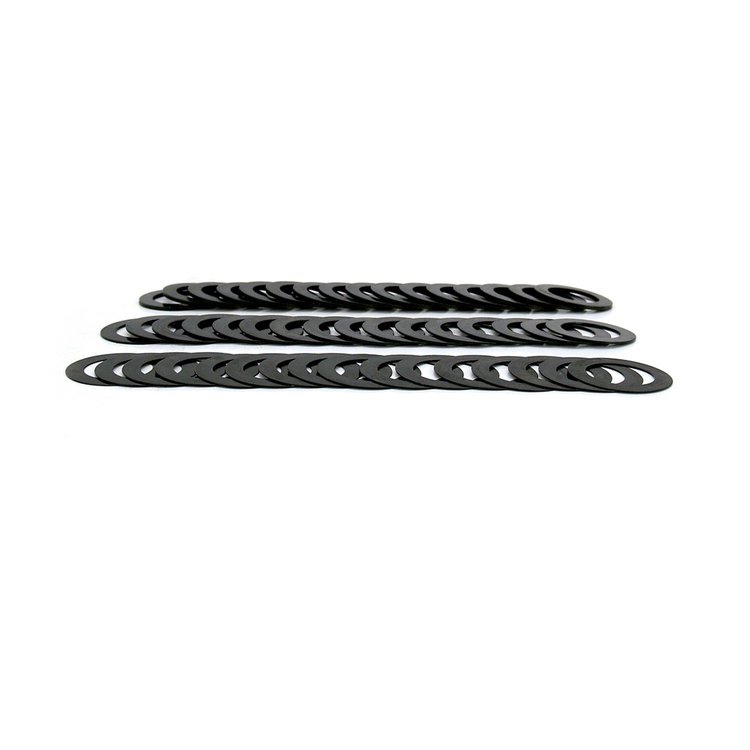

Valve Spring Shim Kit Kit Includes 16 of Each Listed Thickness
$3495
Ships Tomorrow
Lowest Price Guarantee
Valve Spring Shim Kits
- Valve Spring Shim Kit
- Kit Includes 16 of Each Listed Thickness
- Thickness: .015'', .030'', .060''
- Outside Diameter: 1.437''
- Inside Diameter: .645''
- Used To Equalize
- High Quality Shim Stock
- Heat Treated
- 1 Year Limited Warranty
This COMP shim kit includes a number of 1.437" diameter shims of various thickness. This kit includes 16 .015" thick shims, 16 .030" thick shims and 16 .060" thick shims.
- When setting the spring height, shims must be used to equalize the installed height of the valve spring. Comp Cams spring shims are made of the highest quality shim stock and heat treated to stand up to the immense pounding of the radical lobes of today's cams.
- Equalize installed height of valve spring
- Available in three different thicknesses to help achieve proper valve spring height
- Shim kits contain (16) pieces of each thickness listed
Features:
Part TypeValve Spring Shim
Product LineComp Cams Valve Spring Shims
BrandCOMP CAMS
Package Height2.0
Package Width3.62
Package Length6.5
Weight0.6 PG
Part CategoryPerformance Parts
Quantity Of .060 Inch Thick Shims16
Inside Diameter0.645 in (16.383 mm)
QuantitySold as a set of 48
HardenedYes
Quantity Of .030 Inch Thick Shims16
Part FitmentSemi Universal
Outside Diameter1.437 in (36.5 mm)
Quantity Of .015 Inch Thick Shims16
Diameter Outside1.437 in (36.5 mm)
Vendor Part Number4754CPG
Package Qty1
Package TypeEA
