Spring ID Locators Locator Thickness:.60"

Name: Spring ID Locators Locator Thickness:.60"
Brand: COMP CAMS
SKU: 249-4860-16
Price: 72.95 USD
Availability: InStock

^$72⁹⁵

5 left in stock

Ships Today

Lowest Price Guarantee

Spring I.D. Locators

Locator Thickness:.60"
Locator O.D:.1.655''
Locator I.D: .570''
Valve Spring O.D: N/A
Valve Spring I.D: .630"
16/pk
Spring Locator
1 Year Limited Warranty

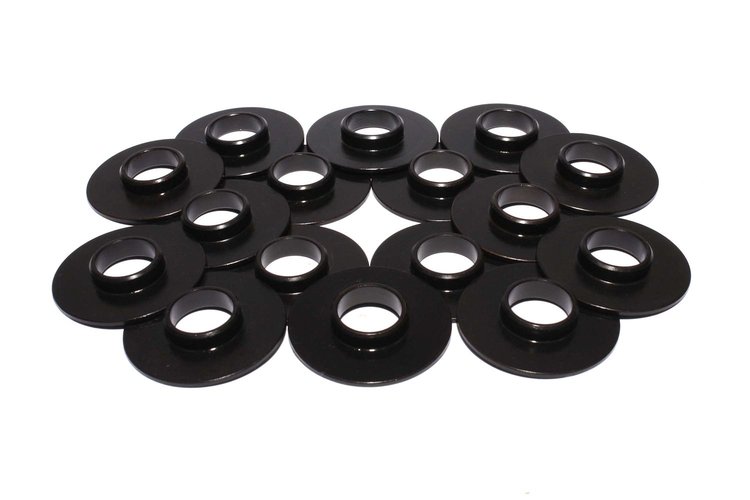

Made from hardened steel, these locators use an inboard locating shoulder to center the seat and hold the spring in place. The 4860 features a 1.655" OD and a .570" ID.

Part TypeValve Spring Seat

BrandCOMP CAMS

Package Height2.0

Package Width2.75

Package Length4.0

Weight0.75 PG

Part CategoryPerformance Parts

Locator MaterialSteel

Locating Shoulder TypeInside

Inside Diameter0.57 in (14.478 mm)

QuantitySold as a set of 16

Locator Thickness0.06 in (1.524 mm)

Part FitmentSemi Universal

Outside Diameter1.655 in (42 mm)

Inside Diameter Of Inner Spring0.63 in (16.002 mm)

Vendor Part Number4860-16

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
