Vehicle Info NeededCOMP CAMSPART NUMBER: 249-49-422-8
Comp Cams CAM EXPLORER CUST.
$57795
Ships on 09/04/2026
Lowest Price GuaranteeFord

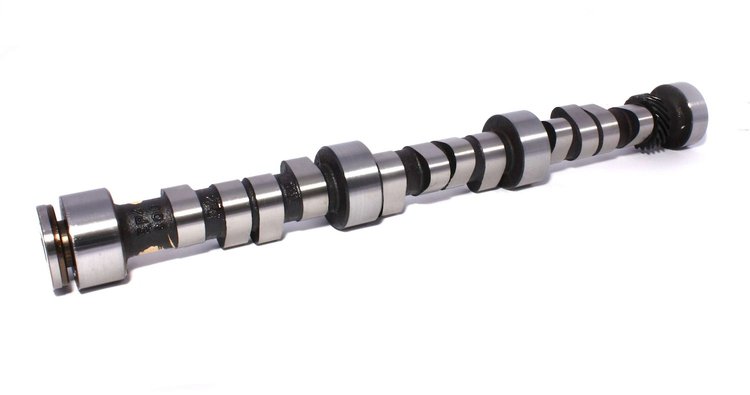

- High Energy Hydraulic Roller Camshaft
- High Torque Cams
- For Street Applications w/Lower Compression Ratios
- Can Be Used w/Most Stock Components
- 1 Year Limited Warranty
Good in Explorers and Rangers with aftermarket chip. Strong torque and mid-range.
Ford 4.0L 1990-2001
Lift: .500"/.500"
Duration: 270°/284°
Lobe Separation Angle: 112°
RPM Range: 1200-5200
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
- Comp Cams High Energy Hydraulic Roller Camshafts are designed work with stock valvetrain components. Each cam provides more power throughout the RPM range with substantial gains above 5000 RPM.
- Work well with mainly stock components (rockers, manifolds, heads, compression, converters, gears)
- Good blend of efficiency and performance
- Perfect choice for performance street rebuilds
Features:
Part TypeCamshaft
Product LineComp Cams High Energy Hydraulic Roller Camshafts
BrandCOMP CAMS
Package Height2.8
Package Width2.9
Package Length24.4
Weight7.75 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic roller tappet
Grind NumberFV6 270HR-12
Exh. Duration Advertised (Deg)284
Engine Make/SizeFord 4.0L
Intake Valve Lift With Factory Rocker Arm Ratio (I0.5
Int. Duration @ .050 In. (Deg)215
Basic Operating Rpm Range1,200-5,200
Intake Valve Lift0.5 in (12.7 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)112
Rpm Range1200-5200
Advertised Duration270 int./284 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.500 int./0.500 exh.
QuantitySold individually
Exhaust Valve Lift0.5 in (12.7 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift215
Exhaust Duration At 050 Inch Lift224
Advertised Exhaust Duration284
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift215 int./224 exh.
Valve Springs RequiredYes
Vendor Part Number49-422-8
Package Qty1
Package TypeEA
