Vehicle Info NeededCOMP CAMSPART NUMBER: 249-5022

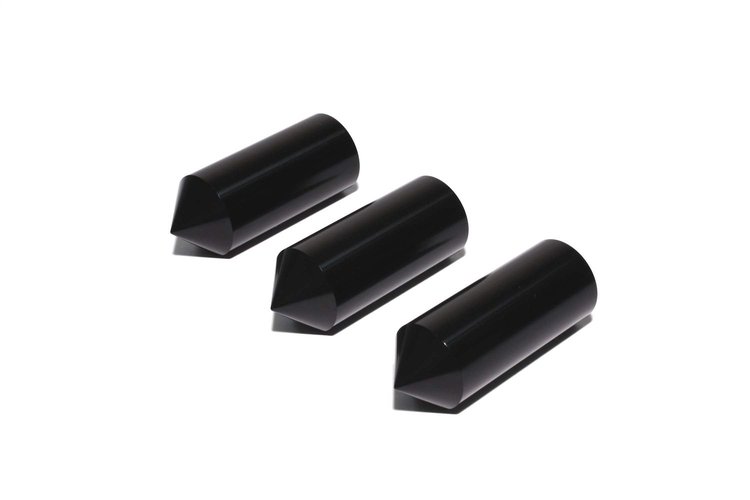

Camshaft Lobe Marking Tool Set
$3995
Ships on 09/04/2026
Lowest Price GuaranteeCamshaft Center Marking Tool
- Camshaft Lobe Marking Tool Set
This easy-to-use tool set allows for quick and effortless measurements. Simply mark the cam lobe with a marking fluid such as machinist blue layout marker or dry erase marker, install the cam, and then place the tool in the lifter bore. Next, turn the cam over to mark a line around the cam lobe, and then remove the cam. Simply measure the distance from the edge of the lobe and change shims to achieve the correct lobe to lifter alignment. Safeguarding your camshaft is that simple with the Camshaft Lobe Center Marking Tool Set.
The camshaft lobe center marking tool set is designed to ensure that your lifters are riding in the middle of the camshaft lobe. This set comes with .842", .875" and .904" diameter tools for use in a variety of engines.
Part TypeLifter Bore Grooving Tool
BrandCOMP CAMS
Package Height2.0
Package Width3.0
Package Length8.0
Weight1.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number5022CPG
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
