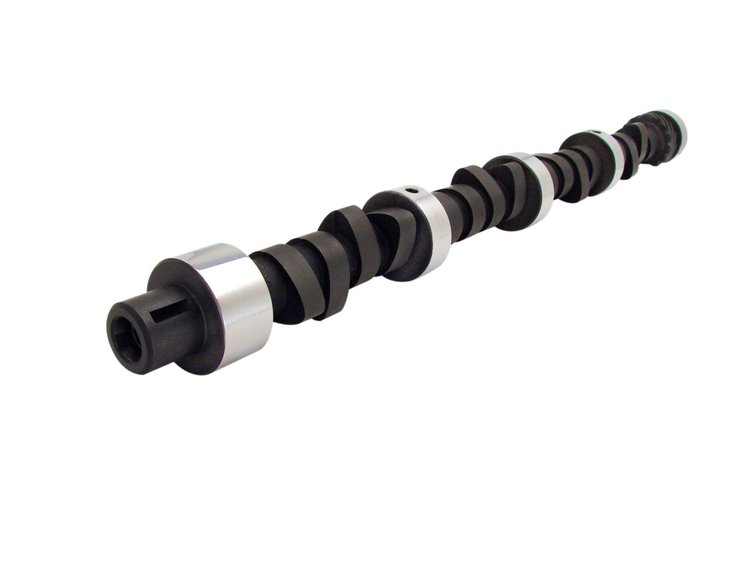

Xtreme Energy 294H Hydraulic Flat Tappet Camshaft Only
Lift: .519''/.524''
Duration: 294°/306°
RPM Range: 2800-6500



Operating Range:	2800-6500 RPM
Duration Advertised:	294° Intake / 306° Exhaust
Duration @ .050' Lift:	250° Intake / 256° Exhaust
Valve Lift w/1.5 Rockers:	.519' Intake / .524' Exhaust
Lobe Separation Angle:	110°

Pontiac; Super Duty; SD; SD455; HO; 455 HO; Trans-Am; Catalina; Firebird; Formula; 421; 455; 400; 428; 350; 265; 301; 370; 389; 301; 287; 317; 347; Ram Air; Ram Air IV; Ram Air III; Bonneville; Grand Prix; LeMans; Parisienne; Grand Am; Century; Regal;


Pro Street/Bracket, good intake, headers, gear, 3500+ stall.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
