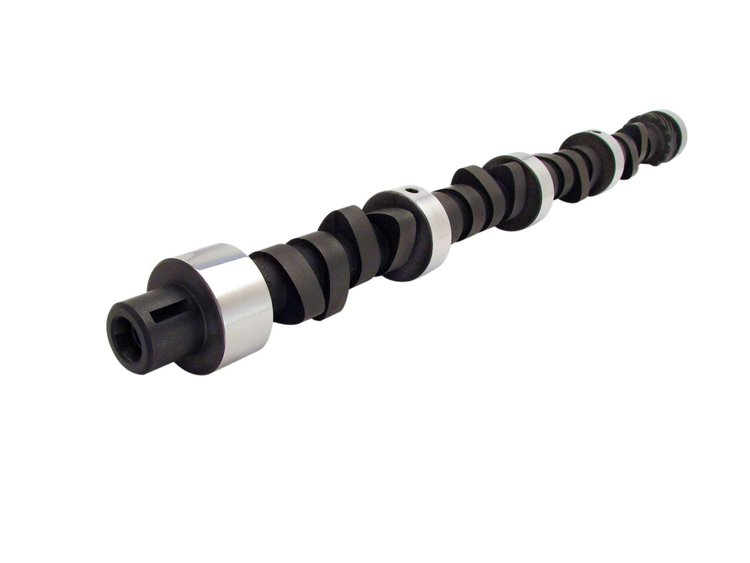

High Energy 252H Hydraulic Flat Tappet Camshaft
Lift: .425''/.425"
Duration: 252°/525°
RPM Range: 800-4800




Operating Range:	800-4800 RPM
Duration Advertised:	252° Intake / 252° Exhaust
Duration @ .050' Lift:	206° Intake / 206° Exhaust
Valve Lift w/1.5 Rockers:	.425' Intake / .425' Exhaust
Lobe Separation Angle:	110°

Pontiac; Super Duty; SD; SD455; HO; 455 HO; Trans-Am; Catalina; Firebird; Formula; 421; 455; 400; 428; 350; 265; 301; 370; 389; 301; 287; 317; 347; Ram Air; Ram Air IV; Ram Air III; Bonneville; Grand Prix; LeMans; Parisienne; Grand Am; Century; Regal;


Smooth idle with fuel economy for 326 to 400c.i. Strong torque. Best cam for 301.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
