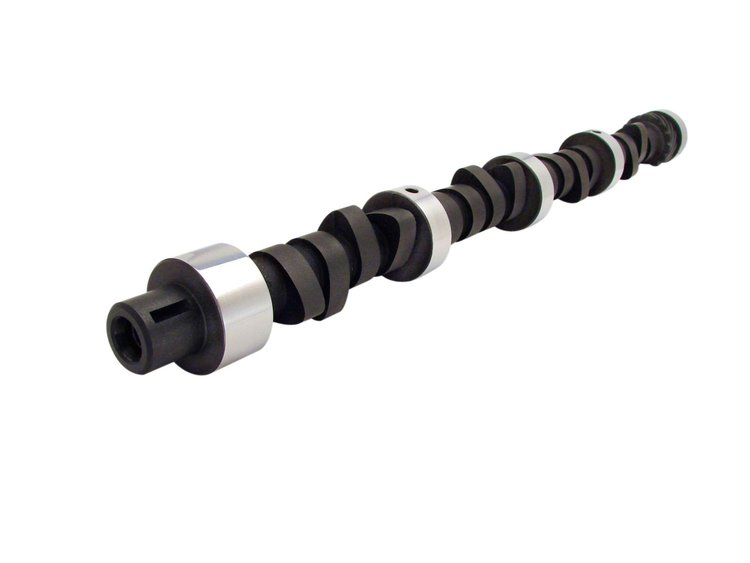

Magnum 270H Hydraulic Flat Tappet Camshaft
Lift: .476''/.476"
Duration: 270°/270°
RPM Range: 1800-5800


Fair idle, good mid-range torque. Can use stock torque converter. Daily performance use.

Operating Range:	1800-5800 RPM
Duration Advertised:	270° Intake / 270° Exhaust
Duration @ .050' Lift:	224° Intake / 224° Exhaust
Valve Lift w/1.5 Rockers:	.476' Intake / .476' Exhaust
Lobe Separation Angle:	110°

Pontiac; Super Duty; SD; SD455; HO; 455 HO; Trans-Am; Catalina; Firebird; Formula; 421; 455; 400; 428; 350; 265; 301; 370; 389; 301; 287; 317; 347; Ram Air; Ram Air IV; Ram Air III; Bonneville; Grand Prix; LeMans; Parisienne; Grand Am; Century; Regal;


Fair idle, good mid-range torque. Can use stock torque converter, best with 2000+ stall. Daily performance use.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
