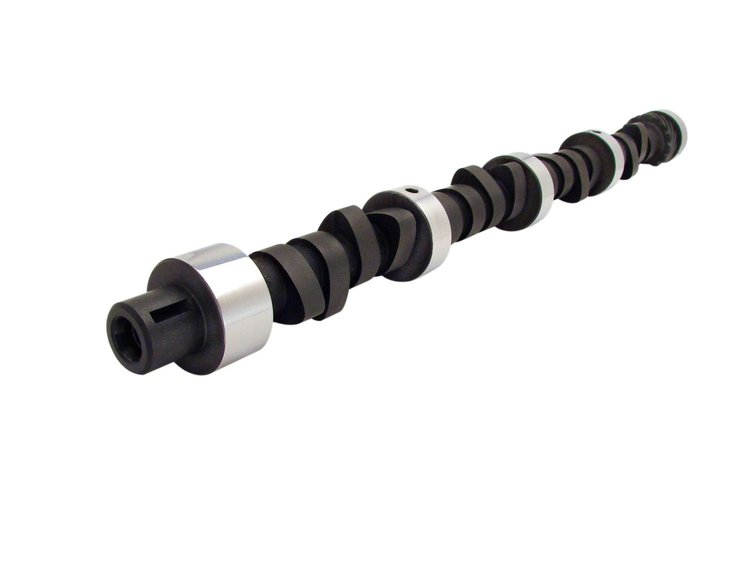

Magnum 294S Mechanical Flat Tappet Camshaft
Lift:.525"/.525"
Duration:294°/294°
Lobe Separation Angle:110°
RPM Range:2500-6500

Rough idle, Needs 10:1+ compression,ratio.Maximum street performance.Use 3000+ stall and low gear.

Operating Range:	2500-6500 RPM
Duration Advertised:	294° Intake / 294° Exhaust
Duration @ .050' Lift:	248° Intake / 248° Exhaust
Valve Lift:	.525' Intake / .525' Exhaust
Lobe Separation Angle:	110°

Pontiac; Super Duty; SD; SD455; HO; 455 HO; Trans-Am; Catalina; Firebird; Formula; 421; 455; 400; 428; 350; 265; 301; 370; 389; 301; 287; 317; 347; Ram Air; Ram Air IV; Ram Air III; Bonneville; Grand Prix; LeMans; Parisienne; Grand Am; Century; Regal;


Rough idle, needs 10:1+ compression ratio. Maximum street performance. Use 3000+ stall and low gear.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
