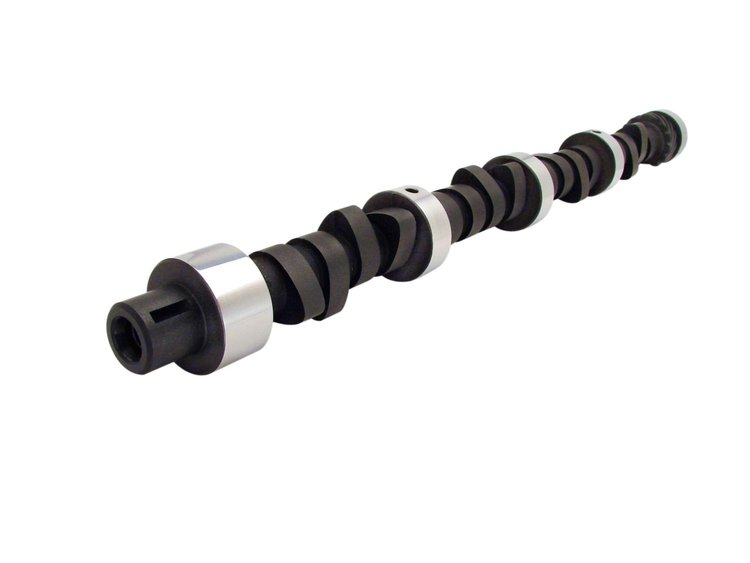

Magnum 306S Mechanical Flat Tappet Camshaft
Lift:.555"/.555"
Duration:306°/306°
Lobe Separation Angle:110°
RPM Range:3000-6500

Rough idle, Pro Street. Needs 10.5:1+ compression and 3500+ stall. Limited street use.

Operating Range:	3000-6500 RPM
Duration Advertised:	306° Intake / 306° Exhaust
Duration @ .050' Lift:	260° Intake / 260° Exhaust
Valve Lift:	.555' Intake / .555' Exhaust
Lobe Separation Angle:	110°

Pontiac; Super Duty; SD; SD455; HO; 455 HO; Trans-Am; Catalina; Firebird; Formula; 421; 455; 400; 428; 350; 265; 301; 370; 389; 301; 287; 317; 347; Ram Air; Ram Air IV; Ram Air III; Bonneville; Grand Prix; LeMans; Parisienne; Grand Am; Century; Regal;


Race idle, Pro Street. Needs 10.5:1+ compression and 3500+ stall. Limited street use.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
