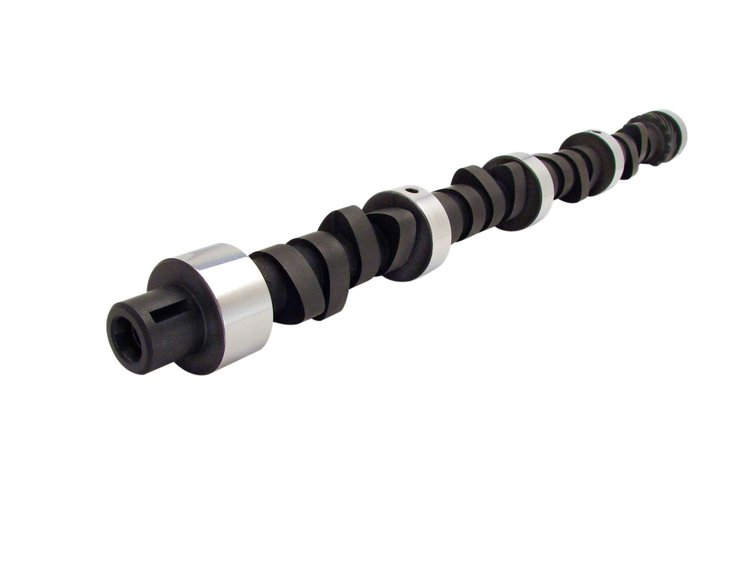

Magnum Muscle Hydraulic Flat Tappet Camshaft Pontiac 265-455ci 1955-81 Lift: .531"/.531"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-51-314-4

Magnum Muscle Hydraulic Flat Tappet Camshaft Pontiac 265-455ci 1955-81 Lift: .531"/.531"

$30995
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Pontiac 265-455ci 1955-81
  • Hydraulic Lifter
  • Magnum Muscle
    • Magnum Muscle Hydraulic Flat Tappet Camshaft
      Pontiac 265-455ci 1955-81
    • Lift: .531"/.531"
    • Duration: 280°/280°
    • Lobe Separation Angle: 110°
    • RPM Range: 1500-5500

    • Replacement For
    • 400 1968 Ram Air IV 366 HP
    • 400 1969 345/370 HP
    • 455 1970 370 HP

      Pontiac; Super Duty; SD; SD455; HO; 455 HO; Trans-Am; Catalina; Firebird; Formula; 421; 455; 400; 428; 350; 265; 301; 370; 389; 301; 287; 317; 347; Ram Air; Ram Air IV; Ram Air III; Bonneville; Grand Prix; LeMans; Parisienne; Grand Am; Century; Regal;


      Magnum Muscle for: 400c.i., 1968 RAM AIR IV, factory 366 HP; 400c.i., 1969, factory 345/370 HP; 455c.i., 1970, factory 370 HP.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Get the benefit of modern technology in a camshaft for your restored muscle car or factory high performance vehicle and retain that great original sound. Comp Cams grinds these cams using factory specs, to keep the performance of your car just as it was back then. Camshaft & Lifter Kits are indicated by a CL in their part number and include Camshaft, Lifters, Assembly Lube, Decals, and Instructions.

    Features:

    • Reproduction of factory original muscle car camshaft
    • Maintain efficiency and drivability of engines
    • New computer controlled aided design avoids previous factory design compromises
    • Tailored to work with the high compression engine of the 1960s and 70s to produce rough idle
    Part TypeCamshaft
    Product LineComp Cams Factory Muscle Car Camshafts
    BrandCOMP CAMS
    Package Height2.75
    Package Width2.87
    Package Length24.5
    Weight9.0 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)237
    Cam StyleHydraulic flat tappet
    Grind NumberP 280AH-10
    Exh. Duration Advertised (Deg)288
    Engine Make/SizePontiac 265-455
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.531
    Int. Duration @ .050 In. (Deg)232
    Basic Operating Rpm Range1,500-5,500
    Intake Valve Lift0.531 in (13.487 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)280
    Lobe Separation (Deg)110
    Rpm Range2500-6200
    Advertised Duration280 int./280 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.531
    UsageStreet/Strip
    Valve Lift With Factory Rocker Arm Ratio0.531 int./0.531 exh.
    QuantitySold individually
    Exhaust Valve Lift0.531 in (13.487 mm)
    Advertised Intake Duration280
    Intake Duration At 050 Inch Lift232
    Exhaust Duration At 050 Inch Lift237
    Advertised Exhaust Duration280
    Lifter TypeHydraulic Flat Tappet
    Part FitmentSemi Universal
    Duration At 050 Inch Lift232 int./237 exh.
    Valve Springs RequiredYes
    Vendor Part Number51-314-4
    Package Qty1
    Package TypeEA
