Product Discontinued
COMP CAMSPART NUMBER: 249-54-418-11

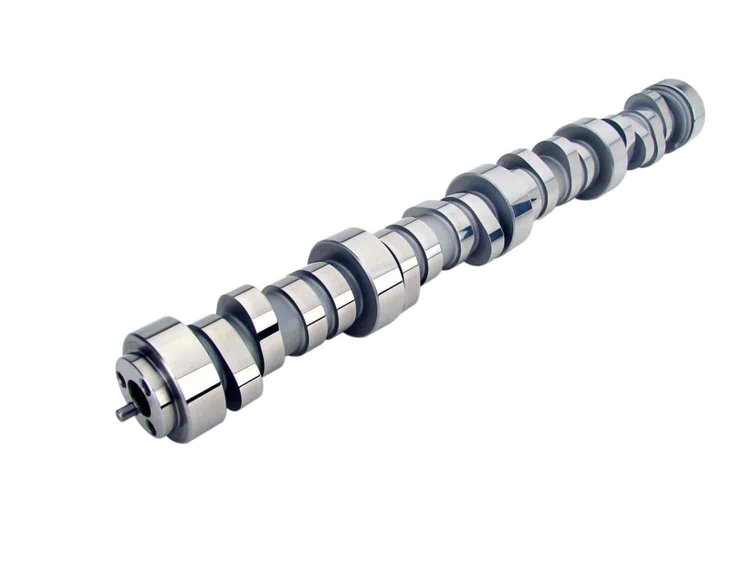

XFI RPM Hydraulic Roller Camshaft GM Gen III/LS1/LS2/LS6 1997-PRESENT (Three-Bolt) Lift: .534" /.537"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
XFI RPM Hydraulic Roller Camshafts
- XFI RPM Hydraulic Roller Camshaft
- Lift: .534''/.537''
- Duration: 277°/281°
- Lobe Separation Angle 112°
- RPM Range: 2000-6800
Street/strip camshaft designed for use with FAST LSX intake. Must have programmer.Operating Range: 2000-6800 RPM Duration Advertised: 277° Intake / 281° Exhaust Duration @ .050': 224° Intake / 228° Exhaust Valve Lift w/1.7 Rockers: .534' Intake / .537' Exhaust Lobe Separation Angle: 112° GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed
Street/strip camshaft designed for use with FAST LSX intake. Requires programmer.
GM Gen III/LS1/LS2/LS6 1997-PRESENT (Three-Bolt)
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.2
Package Length24.4
Weight10.1 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)228
Cam StyleHydraulic roller tappet
Grind NumberXR277HR
Exh. Duration Advertised (Deg)281
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.534
Int. Duration @ .050 In. (Deg)224
Basic Operating Rpm Range2,000-6,800
Intake Valve Lift0.534 in (13.564 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)277
Lobe Separation (Deg)112
Rpm Range2000-6800
Advertised Duration277 int./281 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.537
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.534 int./0.537 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.537 in (13.64 mm)
Advertised Intake Duration277
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift228
Advertised Exhaust Duration281
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift224 int./228 exh.
Valve Springs RequiredYes
Vendor Part Number54-418-11
Package Qty1
Package TypeEA
