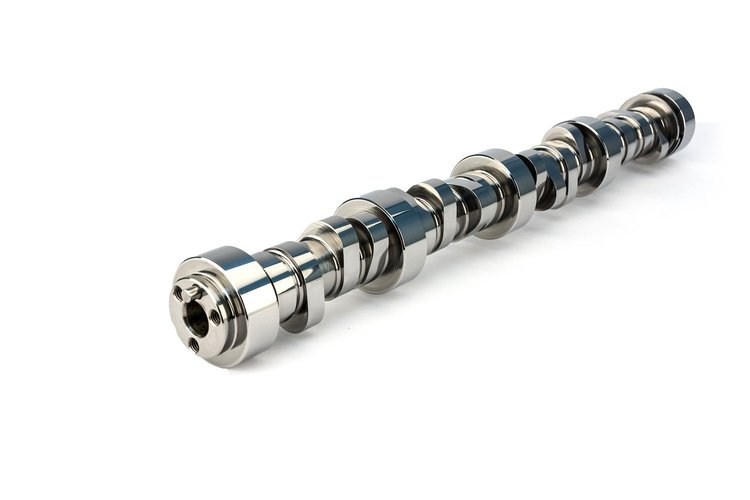

Tri-Power Xtreme Hydraulic Roller Camshaft GM Gen III/VI Three-Bolt 1997-Present Lift: .507"/.500"
Product Discontinued
COMP CAMSPART NUMBER: 249-54-530-11

Tri-Power Xtreme Hydraulic Roller Camshaft GM Gen III/VI Three-Bolt 1997-Present Lift: .507"/.500"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM Gen III/VI Three-Bolt 1997-Present
    Tri-Power Xtreme Hydraulic Roller Camshaft
    GM Gen III/VI Three-Bolt 1997-Present
  • Lift: .507"/.500"
  • Duration: 254°/264°
  • Lobe Separation Angle: 116°
  • RPM Range: 1000-6000

  • Optimized Fuel Mileage
  • Good Torque Horse Power
  • 1 Year Limited Warranty

    GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed


    Exceptional torque with good hp and moderate fuel economy. Needs programmer.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

For late model, fuel injected, computer-controlled engines, Tri-Power Xtreme Camshafts are designed to work with Fast Flash Programmers to optimize torque and horsepower and improve fuel efficiency. They feature a hydraulic roller design, work with a standard valvetrain, and require no modifications to install.

Features:

  • Three different camshaft designs targeted to improve horsepower, torque or fuel efficiency
  • By decreasing pumping losses, efficiency and performance are enhanced, regardless of camshaft selected
  • Designed for factory fuel injected engines; use programmer for best mileage gains
Part TypeCamshaft
Product LineComp Cams TRI-POWER XTREME Hydraulic Roller Camshafts
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight10.16 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)212
Cam StyleHydraulic roller tappet
Grind NumberTPX 254HR-16
Exh. Duration Advertised (Deg)264
Engine Make/SizeChevy 350 LS6
Intake Valve Lift With Factory Rocker Arm Ratio (I0.507
Int. Duration @ .050 In. (Deg)202
Basic Operating Rpm Range1,000-6,000
Intake Valve Lift0.507 in (12.878 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)254
Lobe Separation (Deg)116
Rpm Range1000-6000
Advertised Duration254 int./264 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.507 int./0.500 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.5 in (12.7 mm)
Advertised Intake Duration254
Intake Duration At 050 Inch Lift202
Exhaust Duration At 050 Inch Lift212
Advertised Exhaust Duration264
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift202 int./212 exh.
Valve Springs RequiredYes
Vendor Part Number54-530-11
Package Qty1
Package TypeEA
