Vehicle Info NeededCOMP CAMSPART NUMBER: 249-56-420-8

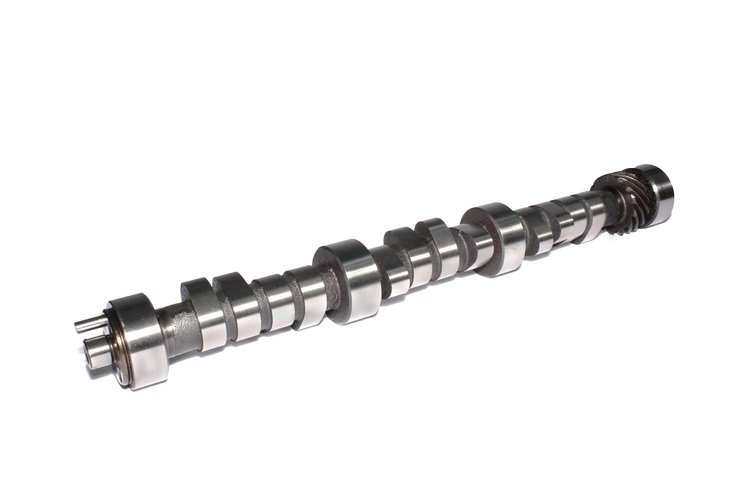

Magnum Hydraulic Roller Camshaft Chevy 4.3L V6 1992-Present Lift: .500"/.500"
$57795
2 left in stock
Ships Today
Lowest Price GuaranteeChevy 4.3 Liter 262ci 90° 6 Cyl. 1992-PresentWith Balance Shaft
- Magnum Hydraulic Roller Camshaft
- Lift: .500"/.500"
- Duration: 270°/270°
- Lobe Separation Angle: 110°
- RPM Range: 1800-5000
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
90 Degree V6; 4.3: 262; Chevrolet 262; Chevrolet 4.3L; LB1; LB4; L35; LF6; S10; Blazer; S10 Blazer; S15; Sonoma; GMC; Safari; Astro Van; Safari; GMC Safari; Silverado
Mild street performance with slight idle for stock converters with aftermarket intake and headers.
Chevy 4.3L V6 1992-Present
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.1
Package Length24.2
Weight6.73 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)215
Cam StyleHydraulic roller tappet
Grind NumberC6 270HR-10
Exh. Duration Advertised (Deg)270
Engine Make/SizeChevy 262
Intake Valve Lift With Factory Rocker Arm Ratio (I0.5
Int. Duration @ .050 In. (Deg)215
Basic Operating Rpm Range1,800-5,000
Intake Valve Lift0.5 in (12.7 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)110
Rpm Range1800-5000
Advertised Duration270 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.500 int./0.500 exh.
QuantitySold individually
Exhaust Valve Lift0.5 in (12.7 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift215
Exhaust Duration At 050 Inch Lift215
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift215 int./215 exh.
Valve Springs RequiredYes
Vendor Part Number56-420-8
Package Qty1
Package TypeEA
