COMP CAMSPART NUMBER: 249-56-440-8

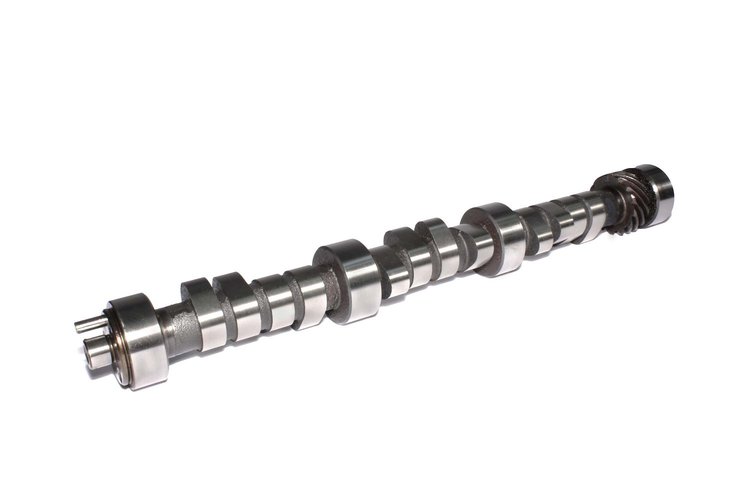

CAMSHAFT GM 4.3L HYD ROL

Name: CAMSHAFT GM 4.3L HYD ROL
Brand: COMP CAMS
SKU: 249-56-440-8
Price: 577.95 USD
Availability: InStock

^$577⁹⁵

Ships on 09/08/2026

Lowest Price Guarantee

Chevy 4.3 Liter 262ci 90° 6 Cyl. 1992-Present

Computer Controlled With Balance Shaft

Lift: .500"/.500"
Duration: 260°/266°
Lobe Separation Angle: 112°
RPM Range: 1200-4500
Cams Are Very Aggressive
Designed For Performance Oriented Vehicles
Deliver More Power Than Standard Camshafts
1 Year Limited Warranty

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft

BrandCOMP CAMS

Package Height2.9

Package Width2.9

Package Length24.3

Weight6.65 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)210

Cam StyleHydraulic roller tappet

Grind NumberC6 260AH-R12

Exh. Duration Advertised (Deg)266

Engine Make/SizeChevy 262

Intake Valve Lift With Factory Rocker Arm Ratio (I0.5

Int. Duration @ .050 In. (Deg)206

Basic Operating Rpm Range1,200-4,500

Intake Valve Lift0.5 in (12.7 mm)

Computer-Controlled CompatibleYes

Int. Duration Advertised (Deg)260

Lobe Separation (Deg)112

Rpm Range1200-4500

Advertised Duration260 int./266 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5

UsageStreet/Strip

Valve Lift With Factory Rocker Arm Ratio0.500 int./0.500 exh.

QuantitySold individually

Exhaust Valve Lift0.5 in (12.7 mm)

Advertised Intake Duration260

Intake Duration At 050 Inch Lift206

Exhaust Duration At 050 Inch Lift210

Advertised Exhaust Duration266

Lifter TypeHydraulic Roller

Duration At 050 Inch Lift206 int./210 exh.

Valve Springs RequiredYes

Vendor Part Number56-440-8

Package Qty1

Package TypeEA
