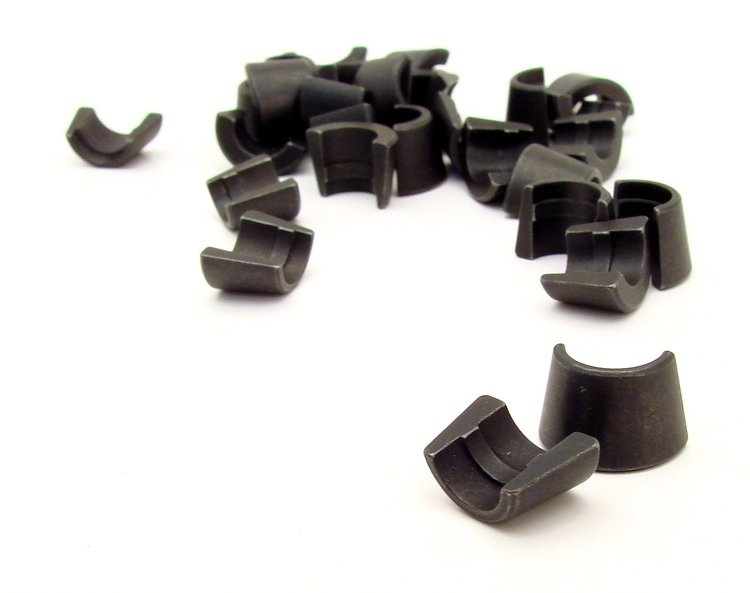

Super Valve Locks Angle: 10°
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-616-16

Super Valve Locks Angle: 10°

$4395
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Super Locks
  • 10° lock angle
    • Super Valve Locks
    • Angle: 10°
    • Valve Stem: 3/8"
    • Installed Height: +.050
    • w/o Lash Cap Recess
    • 16/pkg

    • Wider Angle
    • Precision Machined
    • Super Tough
    • Inside Tang
    • 1 Year Limited Warranty

      Valve Lock; Keeper; Retainer Lock; 10 Degree; 7 Degree; Steel Retainer; 1 Groove; Valve Keeper; Valve Keeper Set; Valve Lock Set; Locks

      Most people believe that the tang inside a valve lock is what holds the valve spring retainer and spring in place while the engine is running, however tangs are not strong enough to withstand today's open spring loads of 1000+ pounds. The tang's sole purpose is to temporarily locate the lock, retainer, and spring relative to the valve until the taper of the retainer can nest around the outside surface of the lock. This creates the "collet effect" that binds the two together; the more spring force exerted on the retainer as the valve opens, the more force applied by the collet effect to keep the retainer and lock in place.

      Show More

      With the emergence of valve sizes other than 5/16", 11/32", and 3/8", it is important to make sure valve locks match valve size. There should always be a small gap between the two halves of the lock when they are properly positioned on the valve stem. If the two halves are in contact without a gap, the valve locks are for a bigger stem. If the locks fit tight to the stem and leave a gap between the middle of the lock and the stem's outer diameter, the locks are too small for the valves. All locks should be checked before final installation to ensure they're the correct size.

      Comp Cams 7° Street Valve Locks are made from stamped, hardened steel. Designed for stock engine rebuilds and only recommended for street use with lighter spring loads. The 7° Race Valve Locks are available in Machined Steel or Titanium. They offer the same valve spring location accuracy as the 10° Super Locks, without the need to change to 10° retainers. Comp Cams 10° Super Locks handle higher spring pressures by distributing load over a larger area. This reduces the chance of a "pull-through" failure. Recommended for all race applications.

    Part TypeValve Spring Retainer Keeper
    Product LineComp Cams Valve Stem Locks
    BrandCOMP CAMS
    Package Height1.5
    Package Width3.62
    Package Length6.5
    Weight0.2 PG
    Part CategoryPerformance Parts
    Lock Style10 degree
    Lock Angle10 Deg.
    Lock MaterialHardened steel
    Lock Groove Quantity1-groove
    QuantitySold as a set of 32
    Valve Stem Diameter0.372 in (9.4 mm)
    Recessed For Lash CapNo
    Manufacturing ProcessMachined
    Vendor Part Number616-16
    Package Qty1
    Package TypeEA
