Vehicle Info NeededCOMP CAMSPART NUMBER: 249-624-512-13

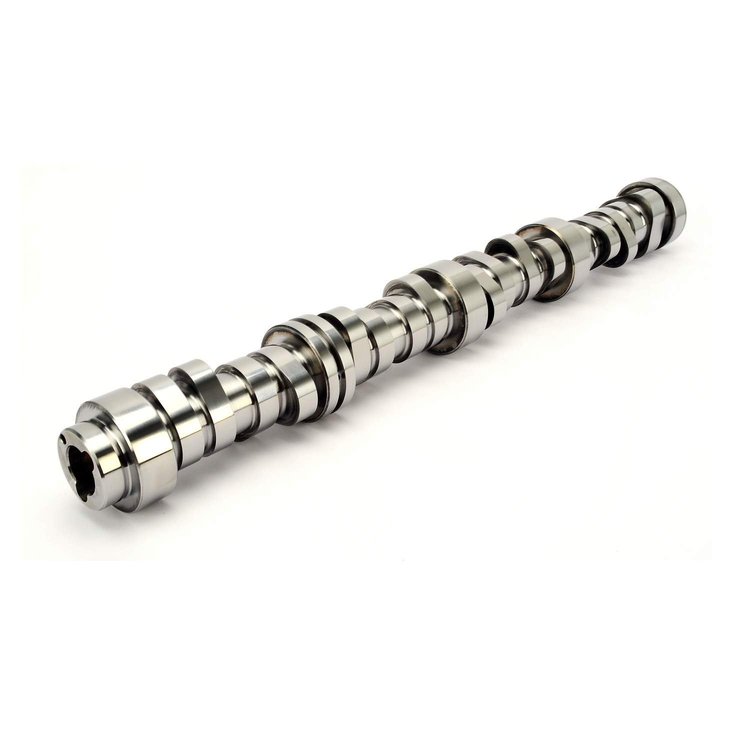

XFI AFM Hydraulic Roller Camshaft GM LT1, GEN V 2014 Lift: .572"/.529"
$60395
Ships on Sep 04, 2026
Lowest Price GuaranteeXFI AFM Hydraulic Roller Camshafts W/ VVT & AFM 2014
- XFI AFM Hydraulic Roller Camshaft
- Lift: .572"/.529"
- Duration: 262°/274°
- Lobe Separation Angle: 116°
- RPM Range: 1600-6700
- Strong Power Gains
- Smooth Idle
LT1; GM; LT4; Corvette; AFM; Camaro; Silverado; Suburban; Tahoe
Excellent responsiveness and mid-range power with across the board gains with AFM enabled.
GM LT1, GEN V 2014
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight8.64 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)226
Cam StyleHydraulic roller tappet
Exh. Duration Advertised (Deg)274
Engine Make/SizeChevy LS Series
Intake Valve Lift With Factory Rocker Arm Ratio (I0.572
Int. Duration @ .050 In. (Deg)214
Basic Operating Rpm Range1,600-6,750
Intake Valve Lift0.572 in (14.529 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)116
Rpm Range1600-6700
Advertised Duration266 int./278 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.529
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.572 int./0.529 exh.
QuantitySold individually
Exhaust Valve Lift0.529 in (13.437 mm)
Advertised Intake Duration266
Intake Duration At 050 Inch Lift214
Exhaust Duration At 050 Inch Lift226
Advertised Exhaust Duration278
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift214 int./226 exh.
Valve Springs RequiredNo
Vendor Part Number624-512-13
Package Qty1
Package TypeEA
