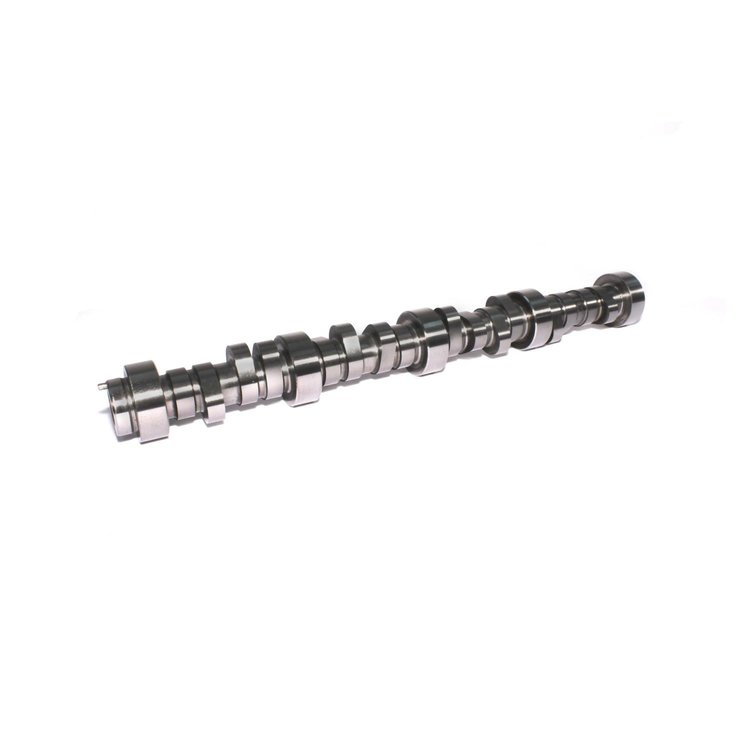

XFI AFM Hydraulic Roller Camshaft GM LS2/LS3, GEN IV 2005-2008 (Single-Bolt) Lift: .500"/.500"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-646-431-13

XFI AFM Hydraulic Roller Camshaft GM LS2/LS3, GEN IV 2005-2008 (Single-Bolt) Lift: .500"/.500"

$68295
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

XFI Hydraulic Roller Camshafts
  • W/ AFM, W/O VVT
  • 2005-2008
    • XFI AFM Hydraulic Roller Camshaft
      GM LS2/LS3, GEN IV 2005-2008 (Single-Bolt)
    • Lift: .500"/.500"
    • Duration: 262°/274°
    • Lobe Separation Angle: 115°
    • RPM Range: 1600-6300

    • Strong Power Gains
    • Smooth Idle

      GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed


      Great all around torque for trucks and other heavy applications; across the board improvements power over stock AFM cams.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft
    BrandCOMP CAMS
    Package Height2.6
    Package Width3.0
    Package Length24.3
    Weight10.95 PG
    Part CategoryPerformance Parts
    UsageStreet/Performance
    Intake Valve Lift0.5 in (12.7 mm)
    Int. Duration Advertised (Deg)262
    Exh. Duration @ .050 In. (Deg)222
    Rpm Range1600-6300
    Lifter TypeHydraulic Roller
    Exh. Duration Advertised (Deg)274
    Engine Make/SizeChevy LS Series
    Int. Duration @ .050 In. (Deg)210
    Exhaust Valve Lift0.5 in (12.7 mm)
    Vendor Part Number646-431-13
    Package Qty1
    Package TypeEA
