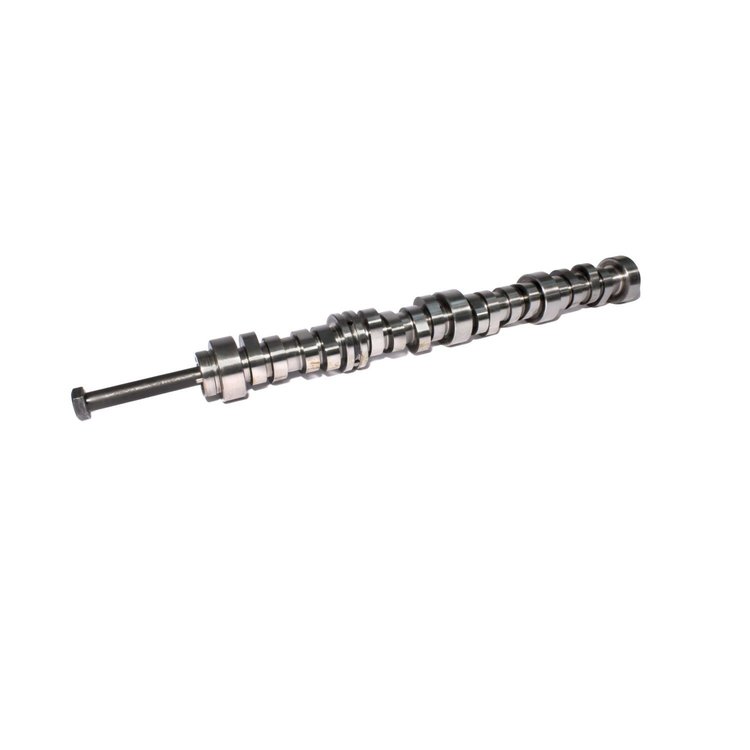

XFI AFM Hydraulic Roller Camshaft GM LS, GEN IV 2005-2008 (Single-Bolt) Lift: .500"/.500"

Product Discontinued

COMP CAMSPART NUMBER: 249-656-422-13

XFI AFM Hydraulic Roller Camshaft GM LS, GEN IV 2005-2008 (Single-Bolt) Lift: .500"/.500"

Name: XFI AFM Hydraulic Roller Camshaft GM LS, GEN IV 2005-2008 (Single-Bolt) Lift: .500"/.500"
Brand: COMP CAMS
SKU: 249-656-422-13
Price: 515.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

XFI AFM Hydraulic Roller Camshafts
W/ VVT (12585994) & AFM

2005-2008

Lift: .500"/.500"
Duration: 270°/282°
Lobe Separation Angle: 115°
RPM Range: 1800-6700
Strong Power Gains
Smooth Idle

Part TypeCamshaft

BrandCOMP CAMS

Package Height3.0

Package Width3.0

Package Length24.5

Weight10.95 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)232

Cam StyleHydraulic roller tappet

Grind Number270PHR15

Exh. Duration Advertised (Deg)294

Engine Make/SizeChevy LS Series

Intake Valve Lift With Factory Rocker Arm Ratio (I0.5

Int. Duration @ .050 In. (Deg)220

Basic Operating Rpm Range1,800-6,600

Intake Valve Lift0.5 in (12.7 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)282

Lobe Separation (Deg)115

Rpm Range1800-6700

Advertised Duration282 int./294 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.500 int./0.500 exh.

QuantitySold individually

Exhaust Valve Lift0.5 in (12.7 mm)

Advertised Intake Duration282

Intake Duration At 050 Inch Lift220

Exhaust Duration At 050 Inch Lift232

Advertised Exhaust Duration294

Lifter TypeHydraulic Roller

Duration At 050 Inch Lift220 int./232 exh.

Valve Springs RequiredNo

Vendor Part Number656-422-13

Package Qty1

Package TypeEA
